I-BEAM SLIDING ANCHOR, 3.5”-14″

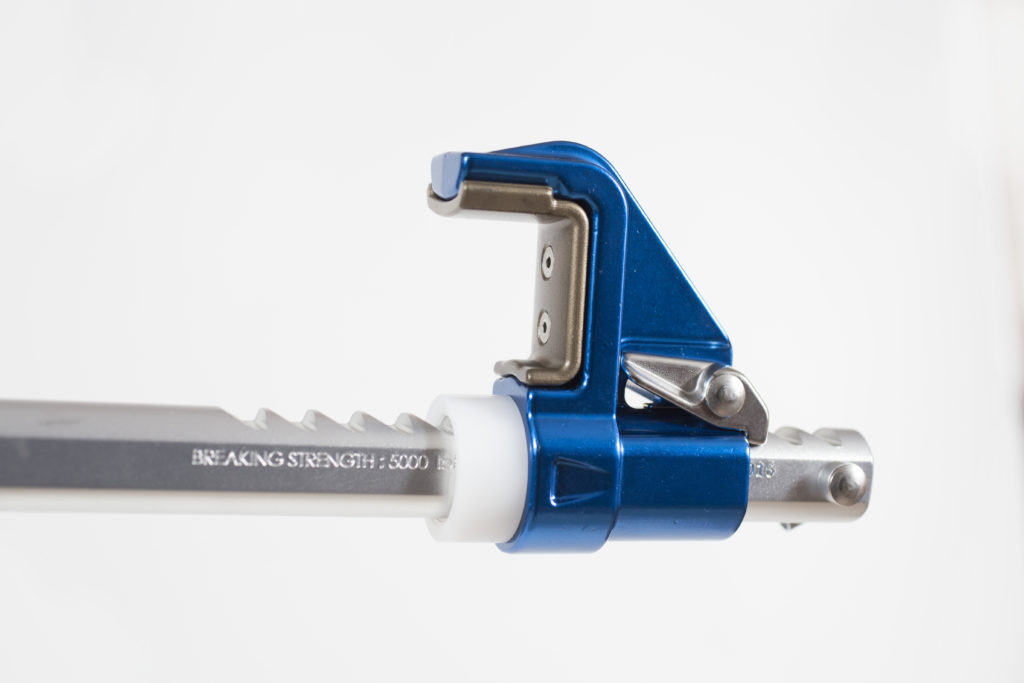

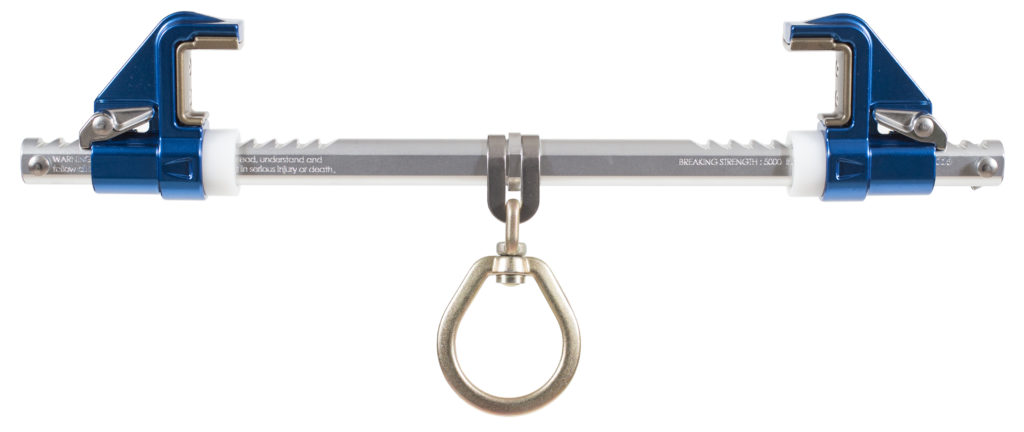

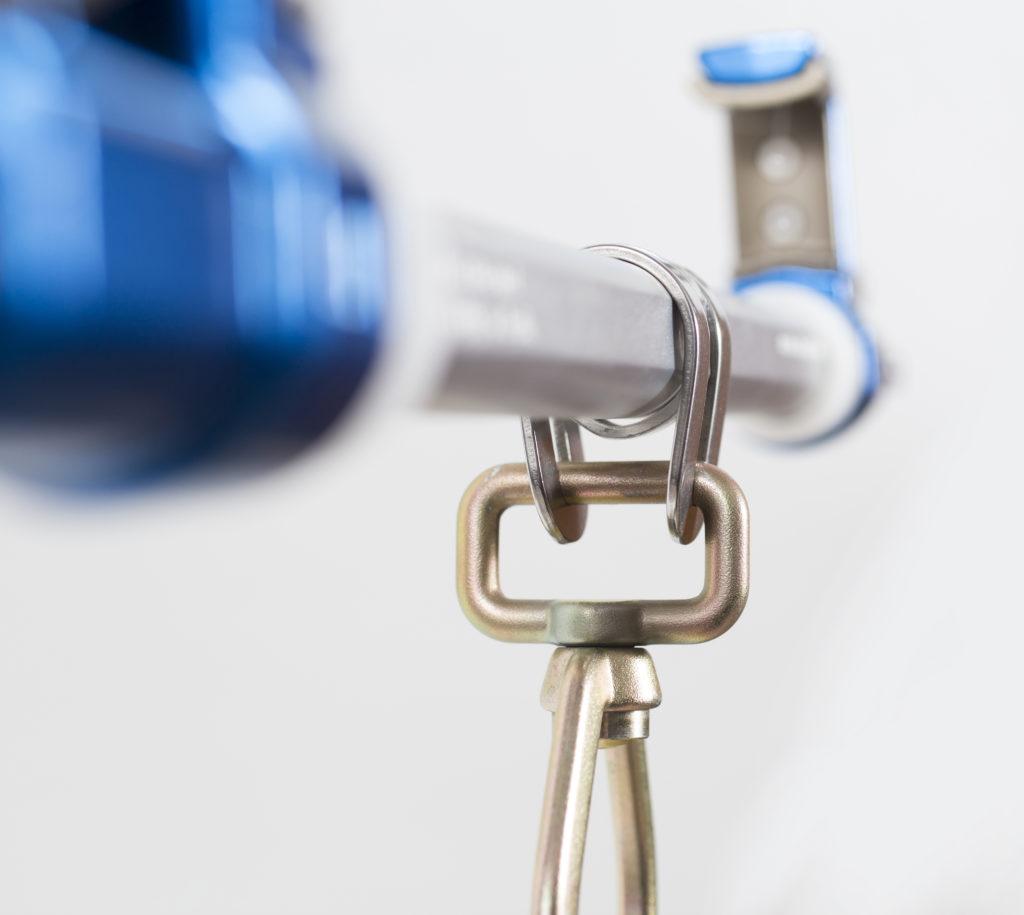

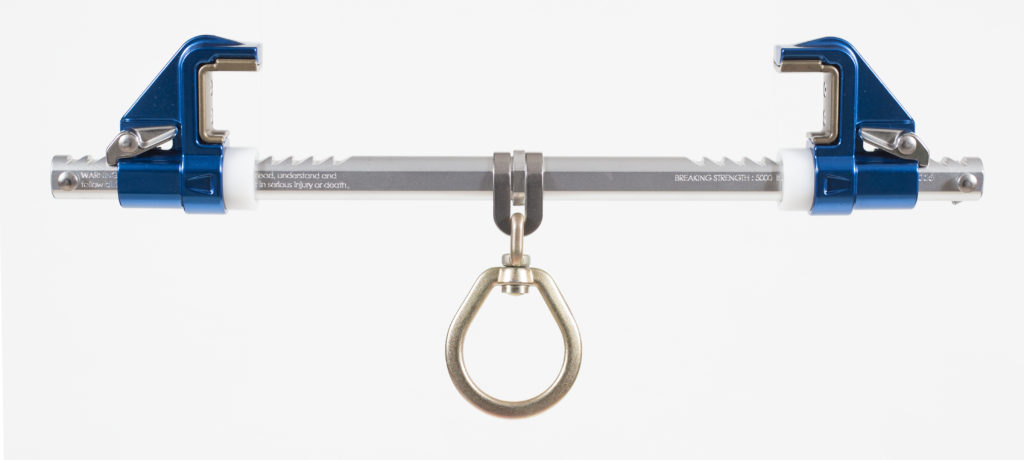

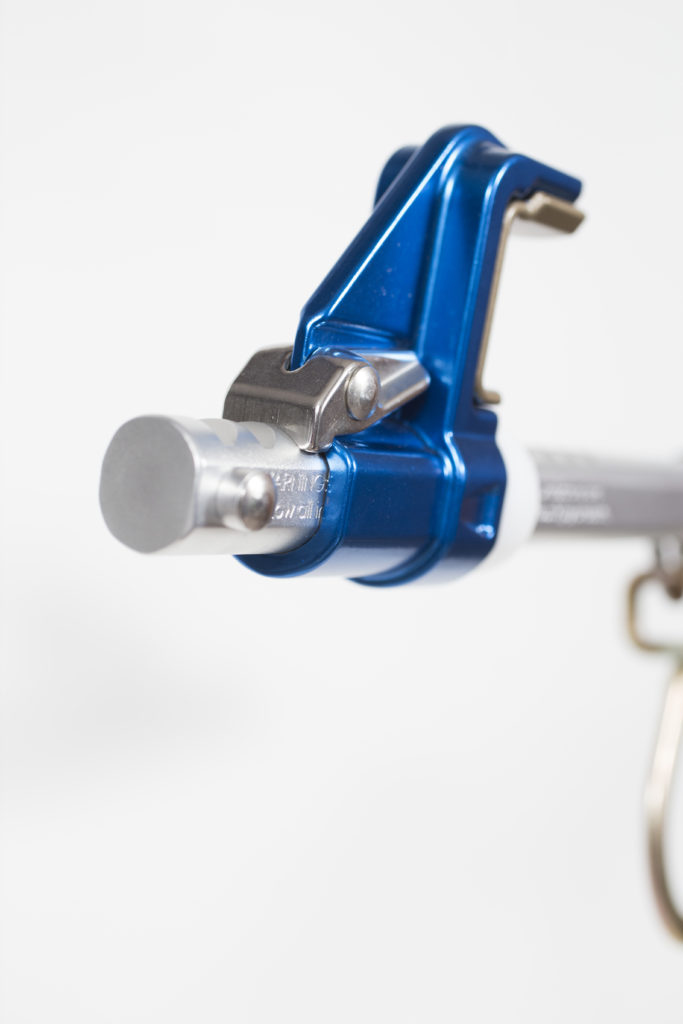

The I-Beam Sliding Anchor is a lightweight, adjustable clamp which attaches to I-Beam flanges and slides along the beam as the user moves. The aluminum design fits beam flanges from 3-1/2 inch to 14 inch with thickness of 1-1/4 inch. Easy to adjust in and out and its design moves smoothly along the beam.

FEATURES

• Lightweight aluminum design moves smoothly across beam
• Fits beam flanges from 3-1/2 in to 14 in
• Fits beams up to 1-1/4 in thick

DETAILS

• Style: I-Beam
• Material: Aluminum
• Minimum Breaking Strength: 44.4 kN (5,000 lbf)
• Anchor Application: General (all purpose)
• Certifications: ANSI/ASSP Z359.18-2017,OSHA 29 CFR 1910.140 & 1926.502
• Permanent/Temporary: Temporary

DIMENSIONS

• Approx. Product Length (in): 22
• Approx. Product Height (in): 3.6
• Approx. Product Width (in): 4.8
• Approx. Product Weight (lb): 3.5
