No detail has been overlooked in our redesign of the ProSeries® Pulleys. Built workhorse tough to deliver years of dependable service, these HD (Heavy Duty) Pulleys are loaded with enhanced features including:
Note: Do not load a single side only of a double-sheave pulley.
Option | Item | PRODUCT WEIGHT | SHEAVE TREAD SIZE | PULLEY DIMENSIONS (H X W) | TYPE | COLOR | NFPA RATING | 3 SIGMA MBS | Price |
---|---|---|---|---|---|---|---|---|---|

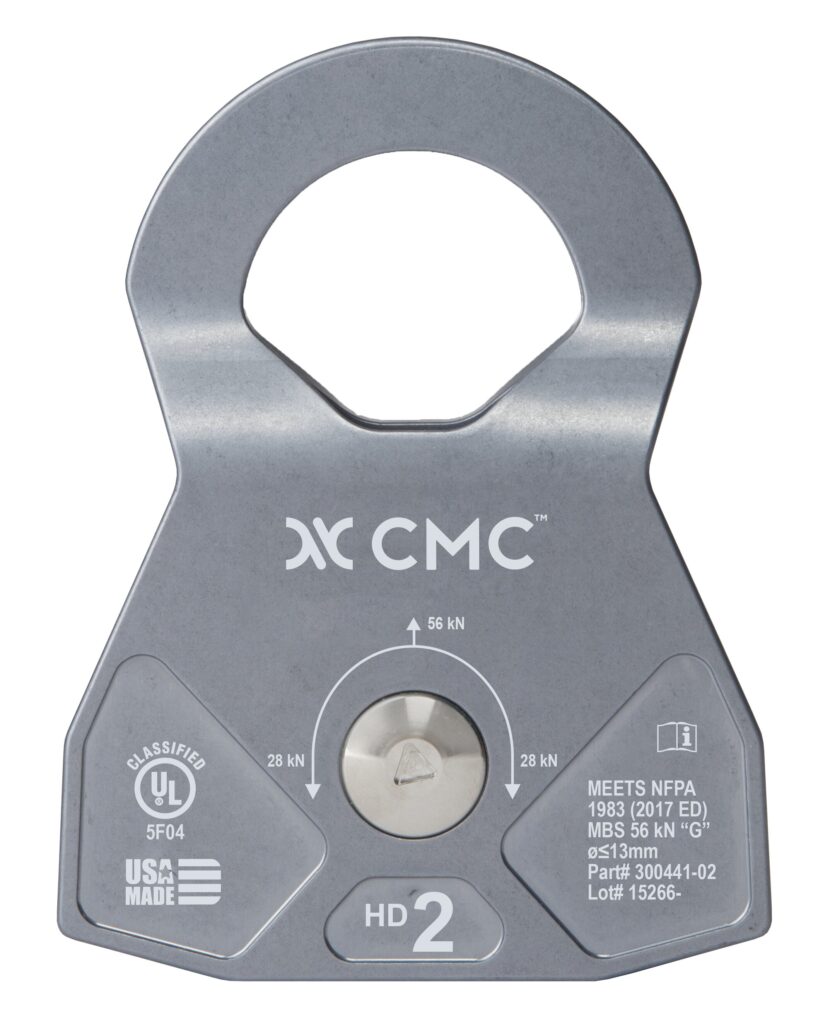

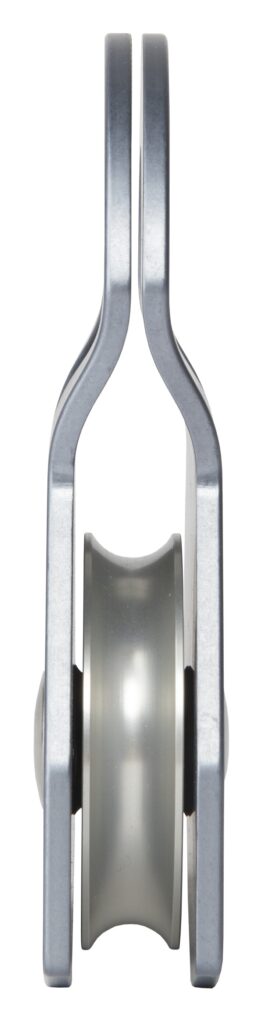

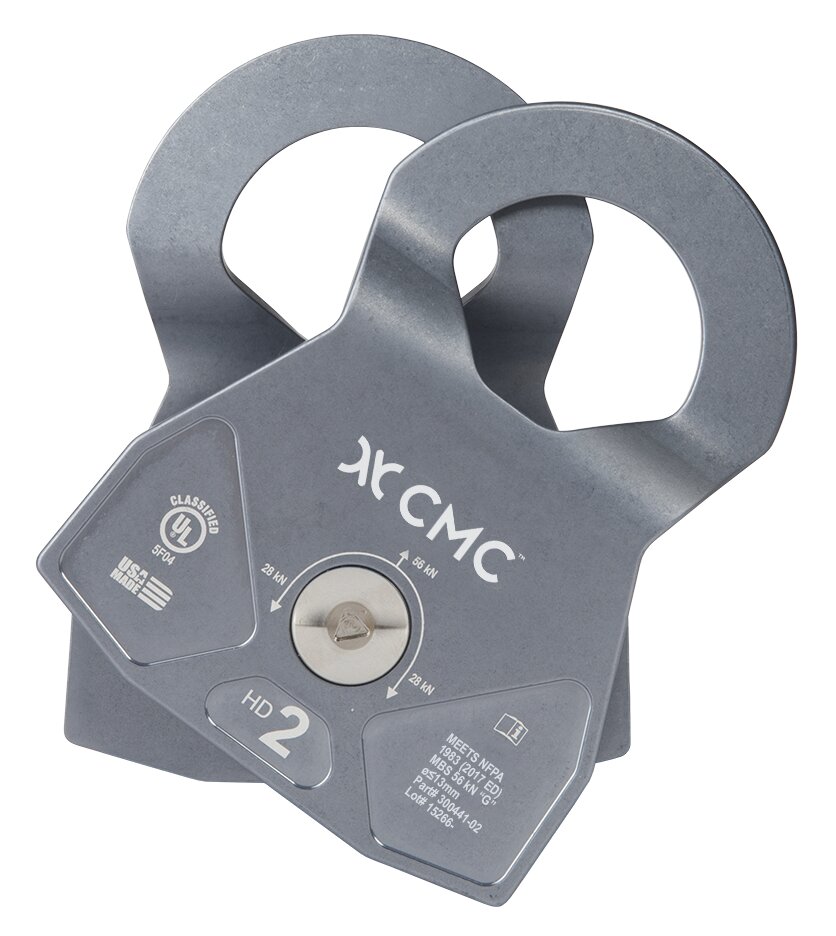

HD2 | 300441 | 367 G (13 OZ) | 57 X 13 MM (2-1/4 X 1/2 IN) | 14.5 X 10.75 CM (5-3/4 X 4-1/4 IN) | SINGLE | GRAY | GENERAL USE | 56 KN (12,588 LBF) | $159 |

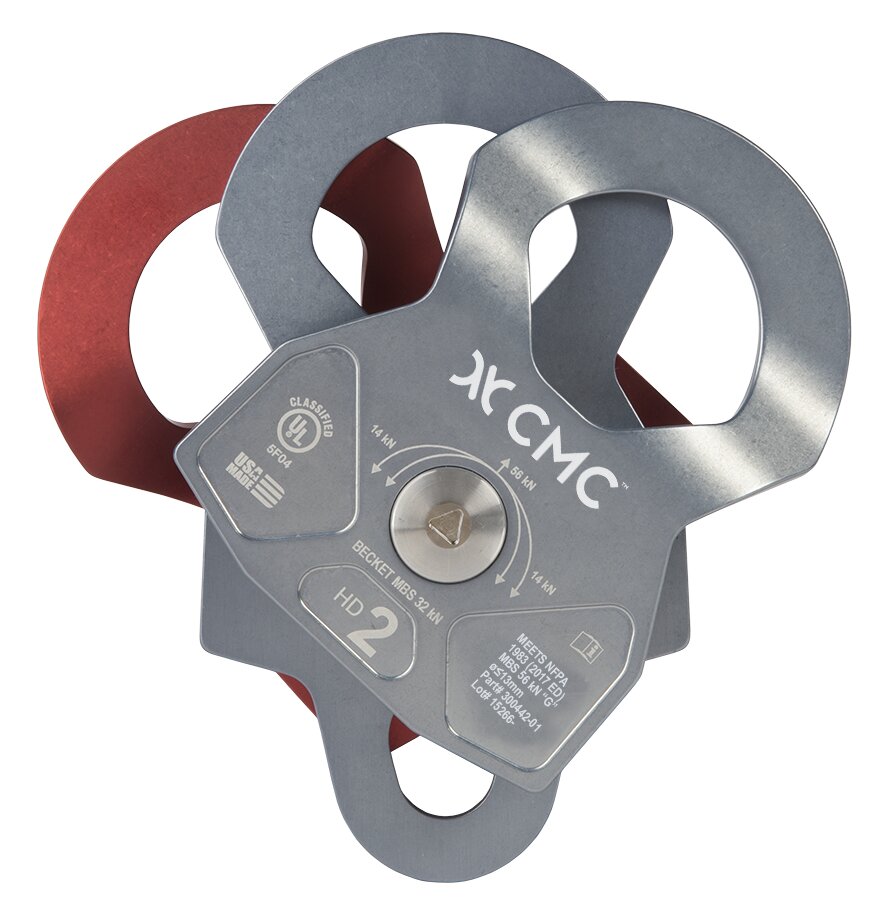

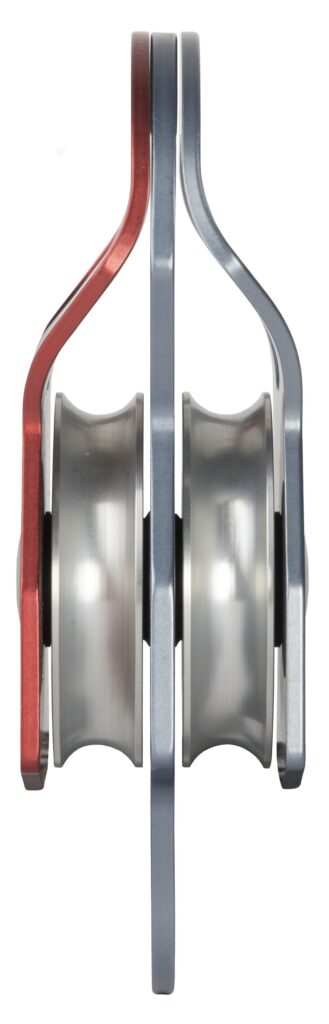

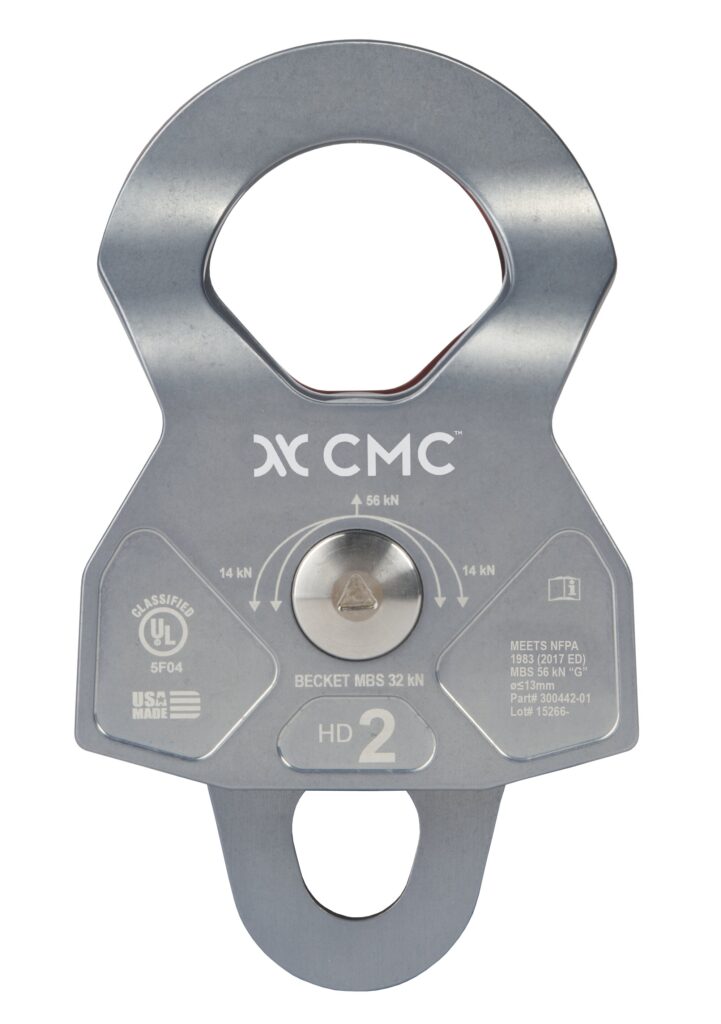

HD2 Double | 300442 | 605 G (1.3 LB) | 57 X 13 MM (2-1/4 X 1/2 IN) | 16.5 X 9.5 CM (6-1/2 X 3-3/4 IN) | DOUBLE | GRAY / RED | GENERAL USE | 56 KN (12,588 LBF) | $229 |

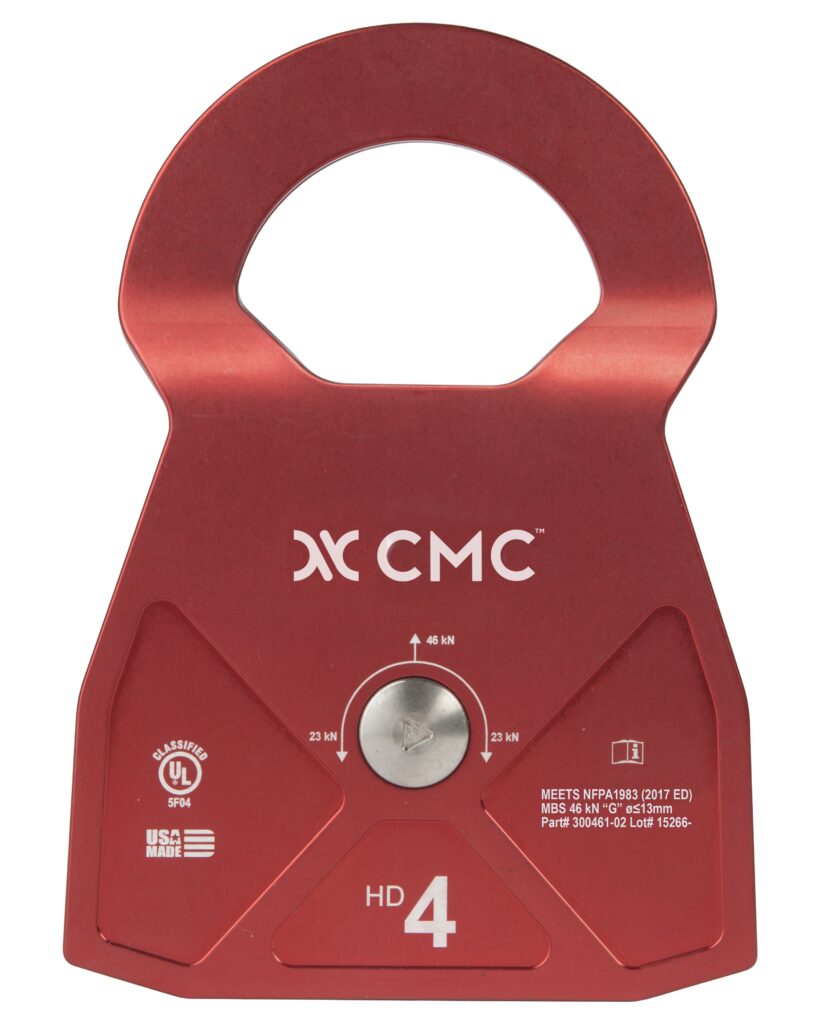

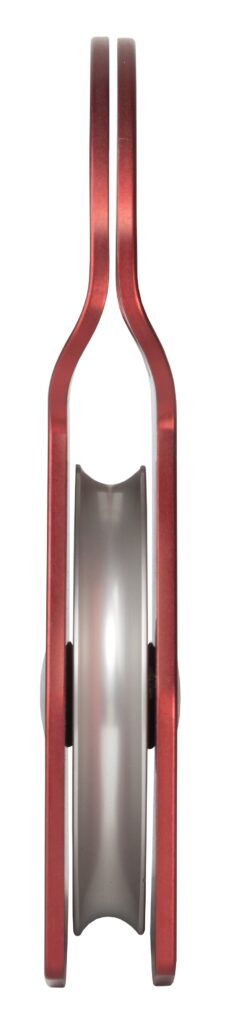

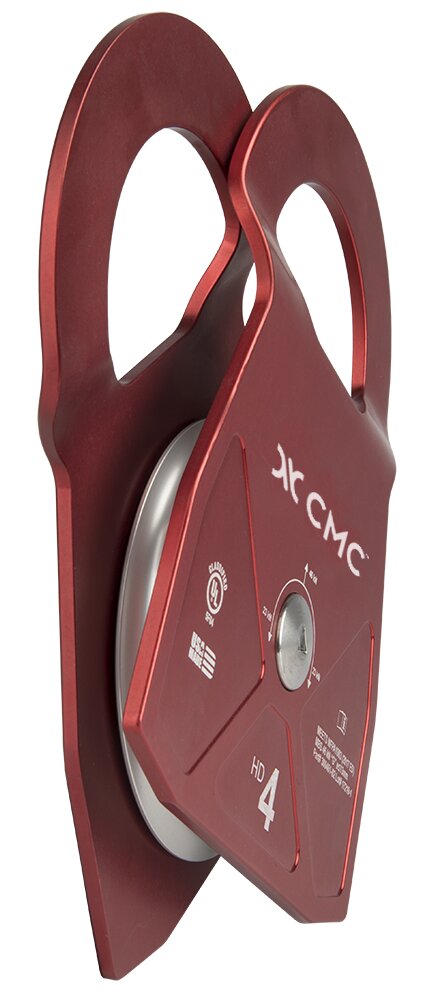

HD4 | 300461 | 850 G (1.9 LB) | 95 X 13 MM (3-3/4 X 1/2 IN) | 19.75 X 14 CM (7-3/4 X 5-1/2 IN) | SINGLE | RED | GENERAL USE | 46 KN (10,340 LBF) | $269 |
