HURLEY PICKET ANCHOR SYSTEM

HURLEY PICKET ANCHOR SYSTEM
$825

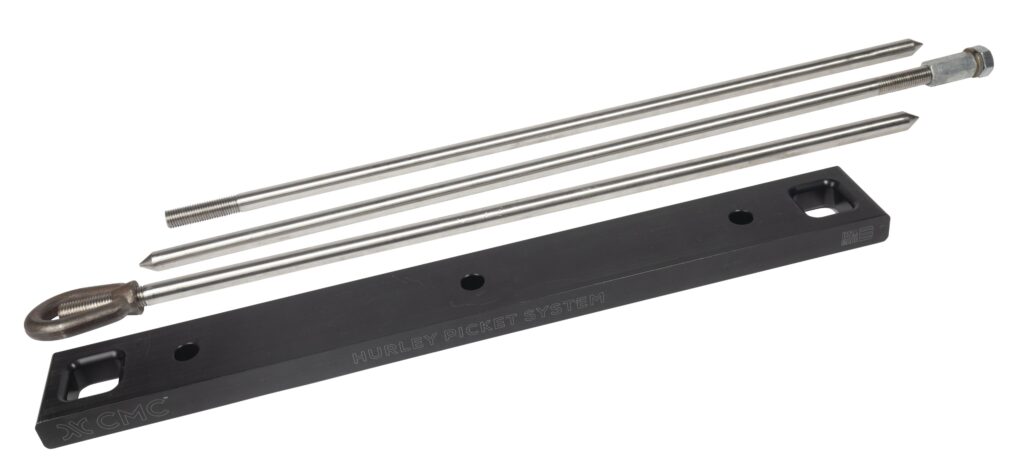

The Hurley Picket Anchor System is a portable anchor system and can be used for the following applications: personal fall arrest, restraint, work positioning, suspension, and rescue. A portable anchor may be necessary when existing natural or manmade… Learn More
Availability: Available Soon
$825
item # 303500
PRODUCT WEIGHT 23,587 G (52 LB, 832 OZ)
ANCHOR PLATE DIMENSIONS 90.2 X 3.8 X 10.2 CM (35.5 X 1.5 X 4 IN)
PICKET DIMENSIONS - ROUND (X3) 104.1 X 2.5 CM (42 X 1 IN)
COLOR BLACK ANODIZED
MATERIALS ANCHOR PLATE: ALUMINUM W/ HARD ANODIZE, PICKET (X3): STAINLESS STEEL
Add to Cart
Learn More

The Hurley Picket Anchor System is a portable anchor system and can be used for the following applications: personal fall arrest, restraint, work positioning, suspension, and rescue. A portable anchor may be necessary when existing natural or manmade anchors are absent or insufficient. The Hurley Picket Anchor System optimizes the pullout capacity of the system through its patented design and precision manufacture process. The breaking strength of the anchor plate and pickets are well in excess of 40 kN as individual components*. When used in a system, the use of rope, webbing or slings will likely limit the breaking strength of the system. In addition, soil conditions will dictate the total holding strength of the system. An understanding of all components to be used in the system, soil conditions, and a careful estimation of the load to be placed on the system is essential for safe operation.

For professional Use only. System includes:



Hurley Picket System Features



*40 kN WARNING: Local soil conditions will dictate the total holding strength of the anchor system. It is up to the user to understand the soil types and conditions present in the areas where the anchor system will be deployed and determine the impact on holding strength.



A $50 flat rate shipping fee applies to this product.

Replacement parts are available for purchase.

PRODUCT WEIGHTANCHOR PLATE DIMENSIONSPICKET DIMENSIONS - ROUND (X3)COLORMATERIALSPrice
23,587 G (52 LB, 832 OZ)90.2 X 3.8 X 10.2 CM (35.5 X 1.5 X 4 IN)104.1 X 2.5 CM (42 X 1 IN)BLACK ANODIZEDANCHOR PLATE: ALUMINUM W/ HARD ANODIZE, PICKET (X3): STAINLESS STEEL$825
