AZTEK EU PROSERIES™ SYSTEM

Available exclusively in Europe through CMC’s authorized European Dealers. Please contact your European Dealer for details.

As one of the most versatile tools in rope rescue, the CMC AZTEK EU ProSeries System is a compact mechanical advantage system that reflects our philosophy of keeping rigging equipment efficient, lightweight, multi-purpose, and easy to use. Our EU system is certified to NFPA General Use and now includes CE marked components certified to EN standards.

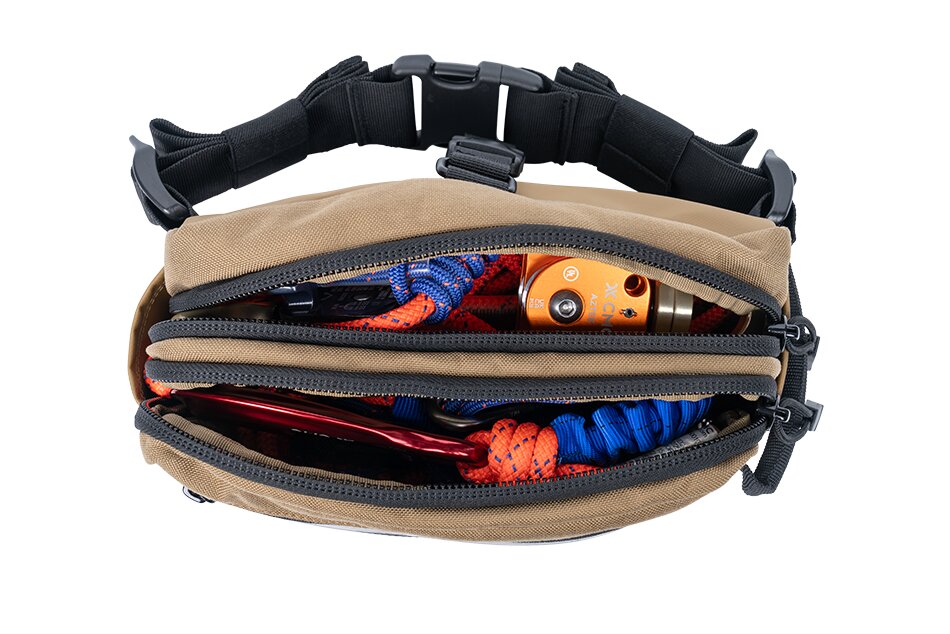

The AZTEK ProSeries Pack offers easy packing of the system in two compartments with Garage Pockets to protect the cord. This pack was recently updated with more durable fabric, reflective piping, an ID label carrier, and a fresh coyote brown colorway. It has a mesh panel for ventilation, double-zippered pockets, and tension lock buckles for carrying on the waist or thigh. Note: product videos may show previous pack model and colorway.

Features

The CMC AZTEK EU ProSeries System is thoughtfully designed to support rope technicians. Each component has been tested and proven to work efficiently in a multitude of lab and field scenarios. Everything comes pre-rigged and fully assembled for immediate deployment.The set-of-fours includes 15.2 m (50 ft) of 8 mm AZTEK ProSeries Cord, which is CMC’s high-performance 100% nylon blend. These can extend to 3.6 m (12 ft) while providing a 4:1 or 5:1 mechanical advantage. For a personal edge travel-restrict with nearly 15.2 m (50 ft) of adjustable travel, attach the carabiner of the personal end of the system to an appropriate anchor and restrict edge travel using the integrated Purcell connected to your harness. The sleeved web edge-pro helps protect the cord around anchors with abrasive surfaces.

Uses

Whether using the set-of-fours (SOFs) as a quick 4:1 or 5:1 M/A for a multitude of rigging applications, or for personal edge protection, the versatile AZTEK ProSeries System gives rescuers endless rigging solutions:

• Quickly adjusts litter attendant position
• High angle litter scoops
• Solo pick-off
• Easily pass knots
• Correct disoriented equipment under load
• Effortlessly transfer loads
• Promptly establish dynamic fixed brakes
• Pretensioned back-ties
• Redirect anchors
• Establish travel restriction
• Dynamic directionals
• Dynamic lowers
• Hauling systems
• High angle attendant tether
• Load-releasing hitch
• Personal mechanical advantage (PMA)
• Tensioned guying

Contents

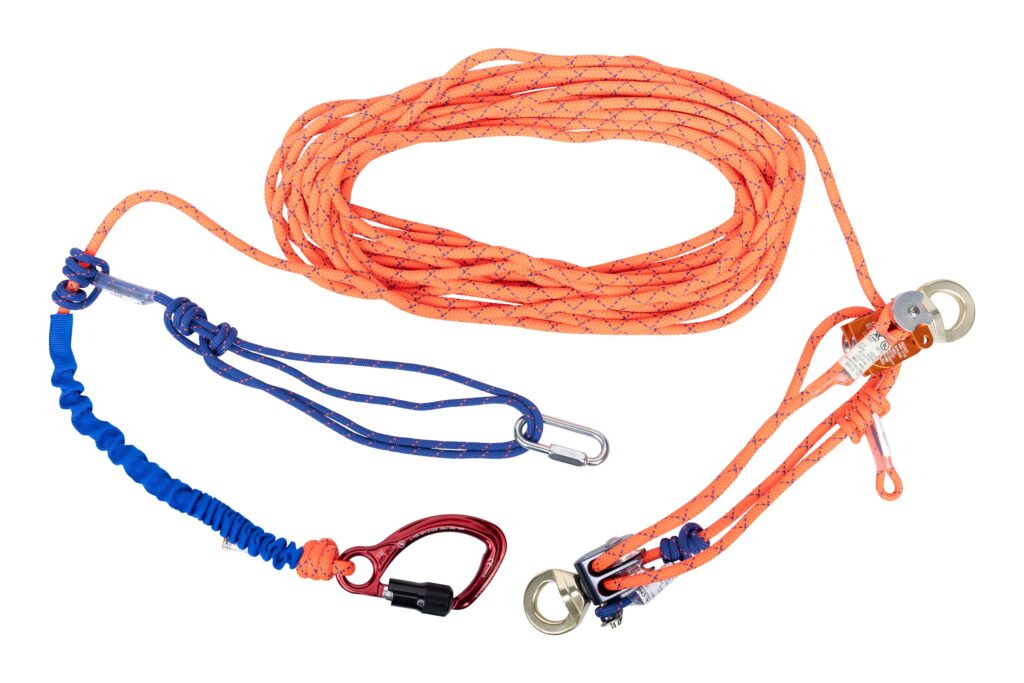

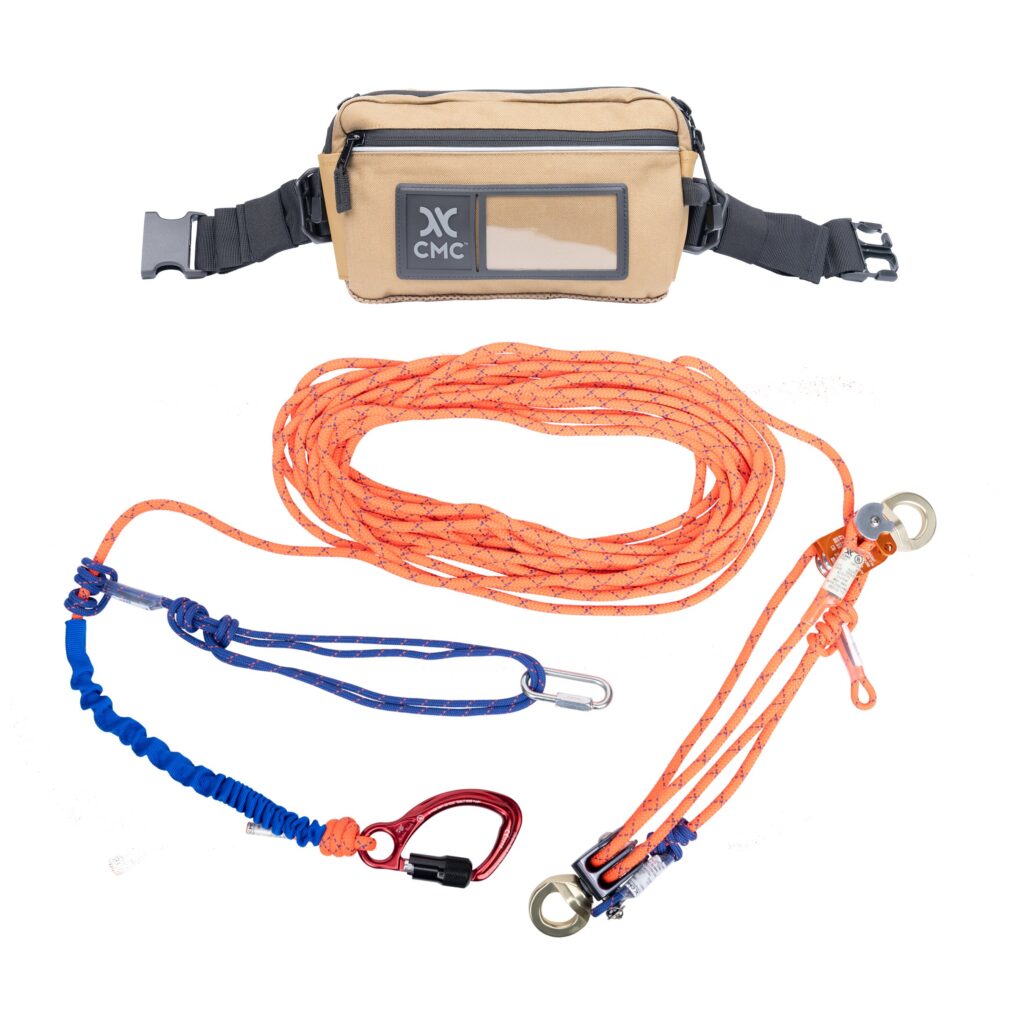

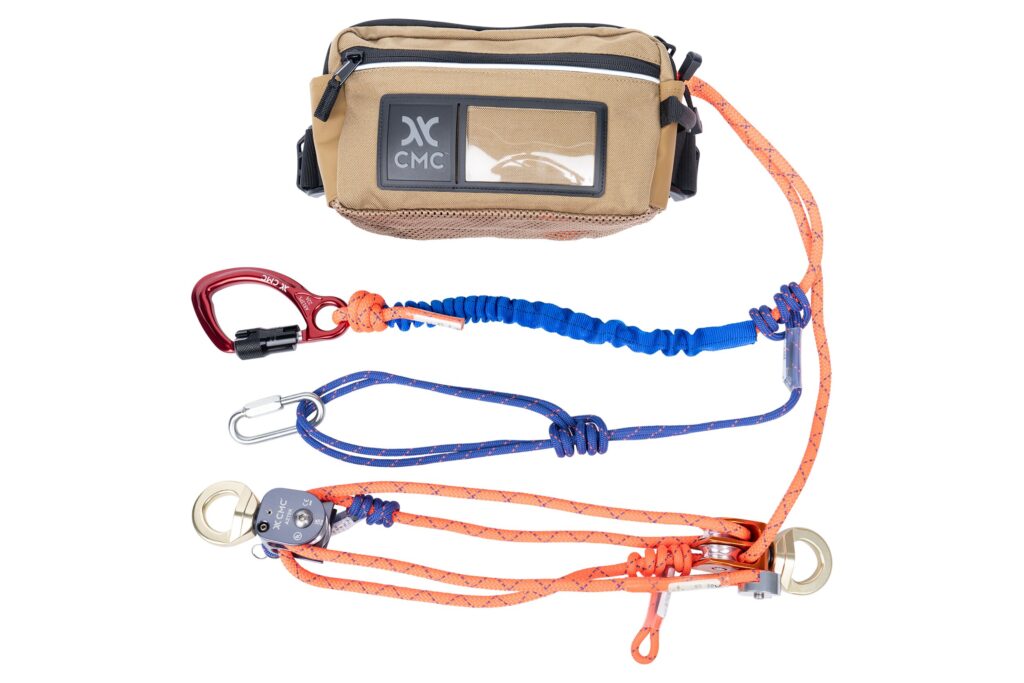

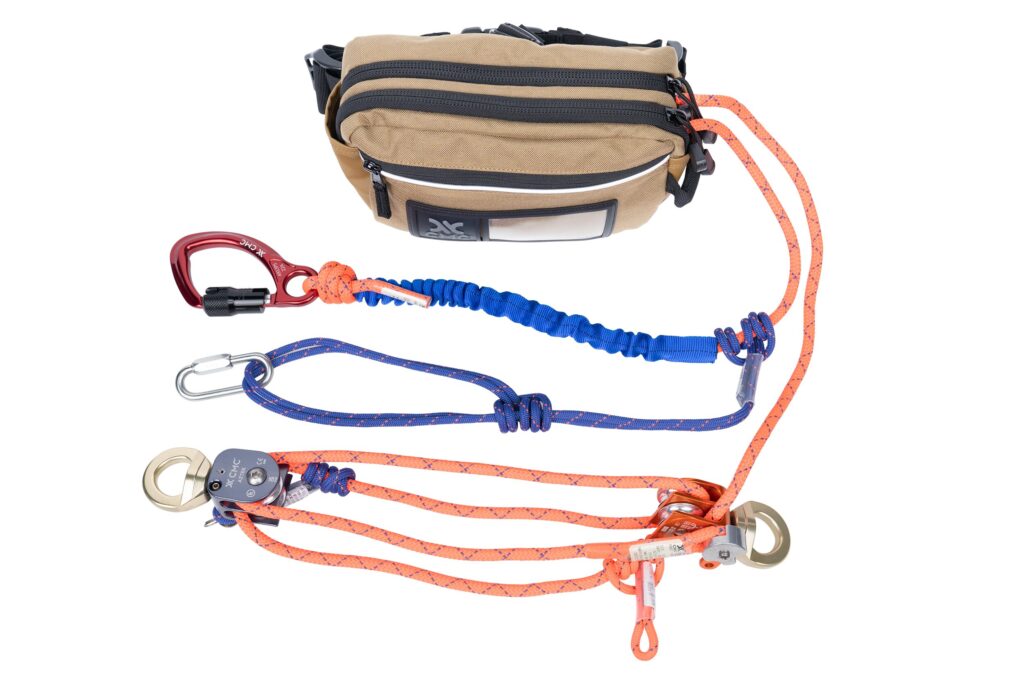

The CMC AZTEK ProSeries System comes fully assembled in the AZTEK ProSeries Pack and includes the following:

• AZTEK Double Pulleys, (1 Blue, 1 Orange)
• Quick Pin for AZTEK Pulley (1)
• AZTEK ProSeries Cord, Orange, 8 mm: 15.2 m (50 ft) with sewn-eye termination
• AZTEK Edge-Pro Tubular Webbing, Blue: .6 m (24 in)
• Aluminum Auto-Lock Captive-Eye Carabiner
• AZTEK Bound-Loop Prusik, Orange, 6 mm: 23 cm (9 in)
• AZTEK Bound-Loop Prusik, Blue, 6 mm: 23 cm (9 in)
• AZTEK Bound-Loop Purcell, Blue, 6 mm: 107 cm (42 in)
• Maillon Rapide Quick Link, Oval, 7 mm (1)
