PROTECH™ ALUMINUM KEY-LOCK CARABINERS

PROTECH™ ALUMINUM KEY-LOCK CARABINERS
Ideal for rescue and rope access, this anodized carabiner’s patented key-lock design does not hang up when unclipping from your harness or web. An optimized D-shape maximizes its strength, and its wide gate opening fits over 1-inch (25-mm) diameter… Learn More
Add to Cart
Learn More

Ideal for rescue and rope access, this anodized carabiner’s patented key-lock design does not hang up when unclipping from your harness or web. An optimized D-shape maximizes its strength, and its wide gate opening fits over 1-inch (25-mm) diameter railings, unusual for a carabiner this compact and light. Safety indicators etched on the gate augment easy one-hand operation. Manual-Lock and Auto-Lock versions are available with a removable keeper pin for use with lanyards or for terminating escape or RIT lines. Every carabiner is proof loaded. Serial numbers on every carabiner.

Patented



ProTechMajor AxisMinor AxisMajor Axis, Gate Open
30016126 kn9 kn11 kn
30016526 kn9 kn11 kn
30016926 kn9 kn11 kn
30018226 kn9 kn11 kn
30018929 kn8 kn11 kn
30019326 kn9 kn11 kn
30015329 kn8 kn11 kn



OptionItemPRODUCT WEIGHTGATE OPENINGINTERIOR LENGTHGATE / COLORNFPA RATING3 SIGMA MBSPrice

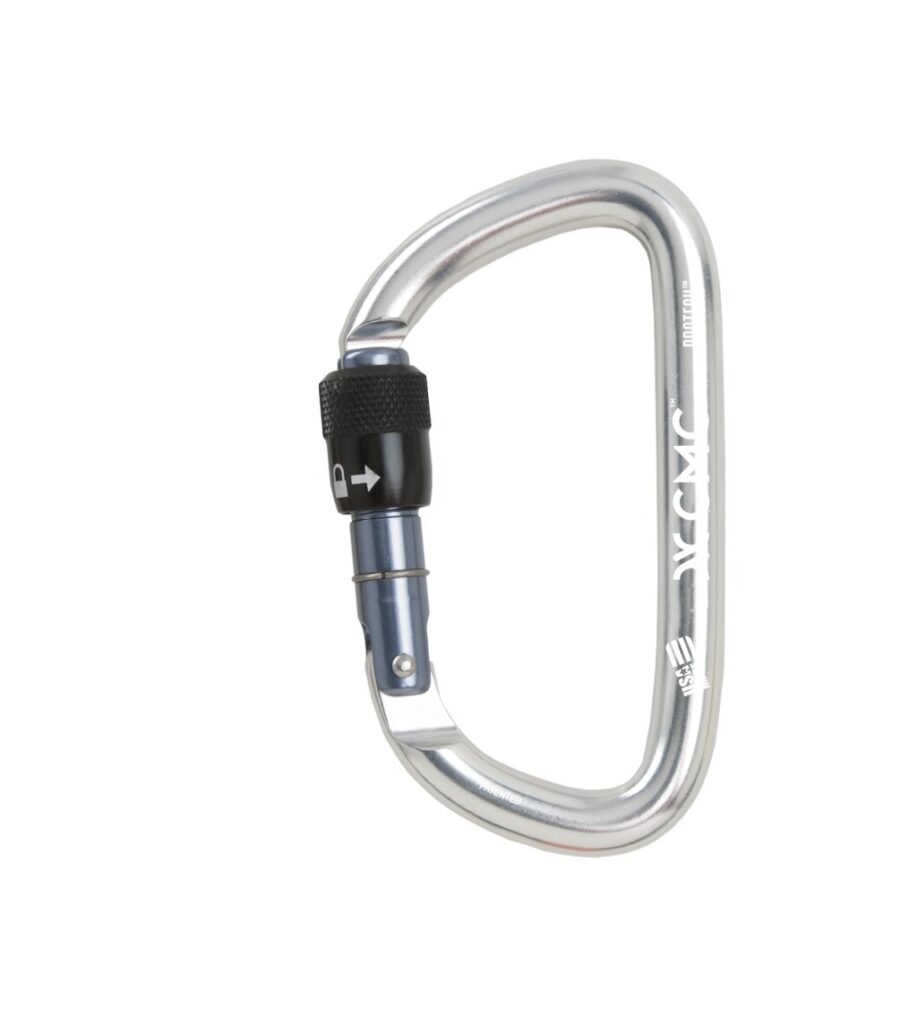

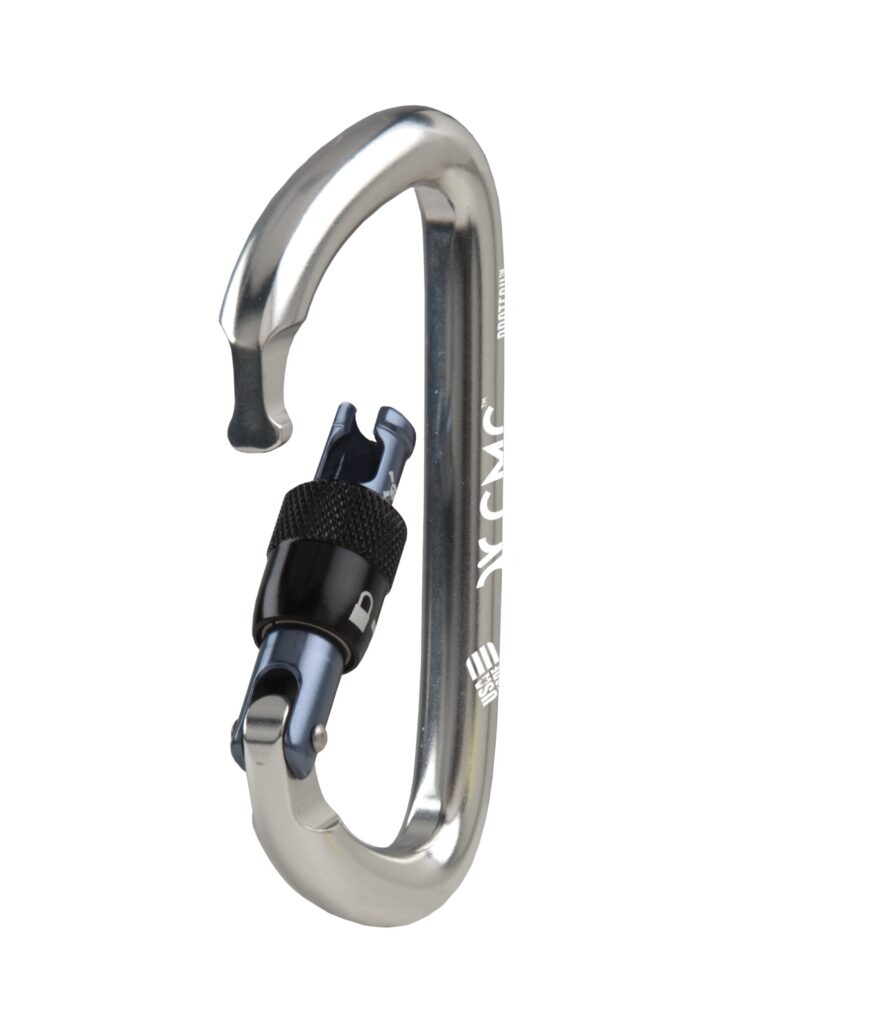

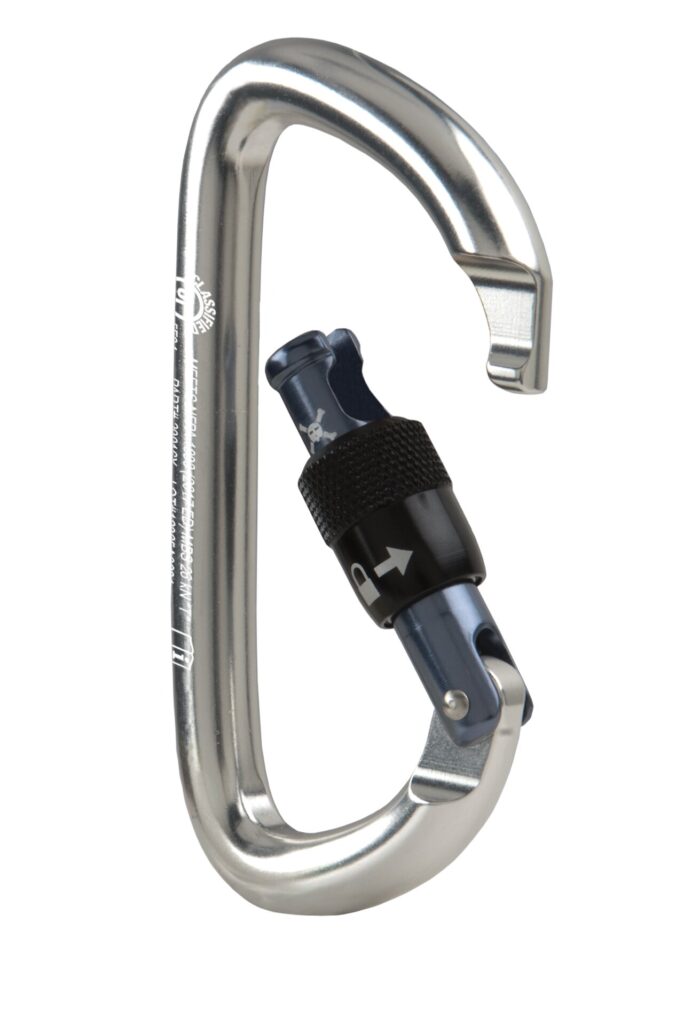

Screw-Lock, Brite300161 2.6 OZ (74 G) 1 IN (25 MM) 3.53 IN (89 MM) SCREW-LOCK / BRITE TECHNICAL USE 26 KN (5,845 LBF)$20

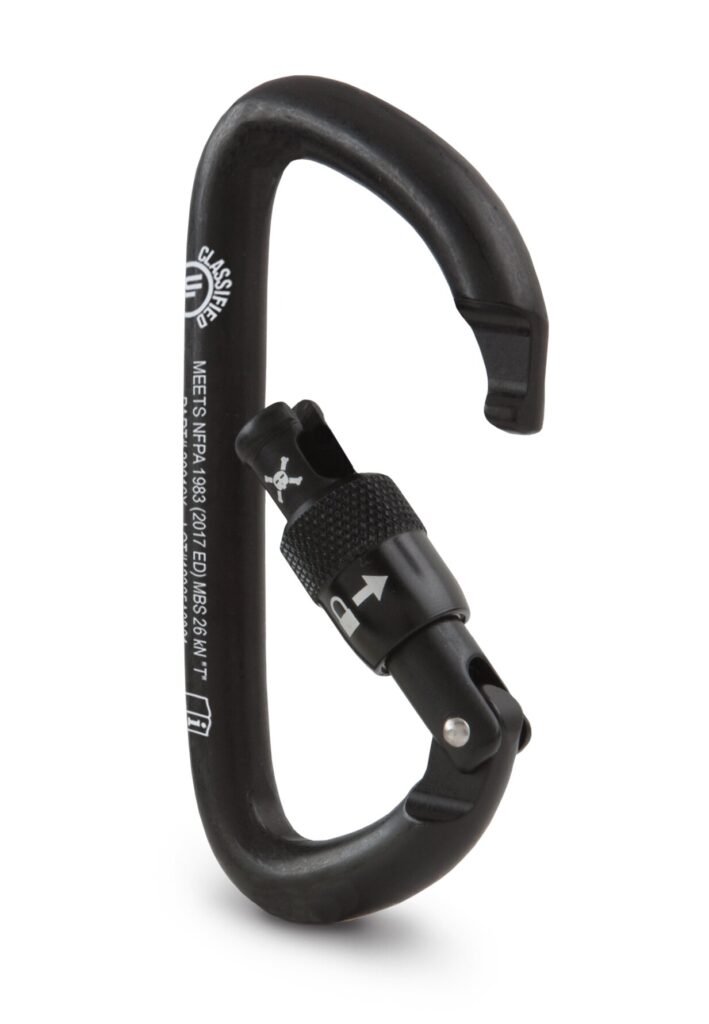

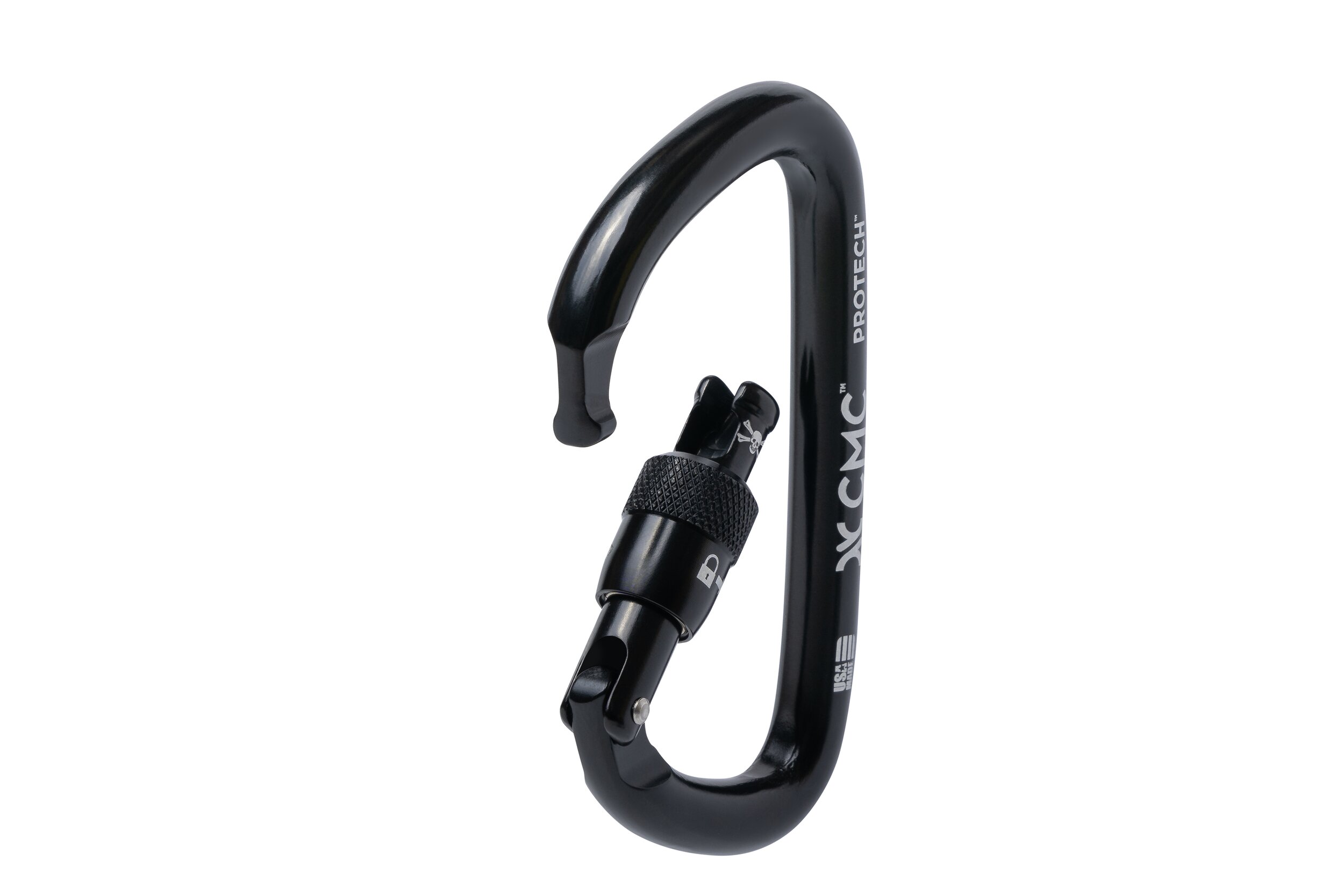

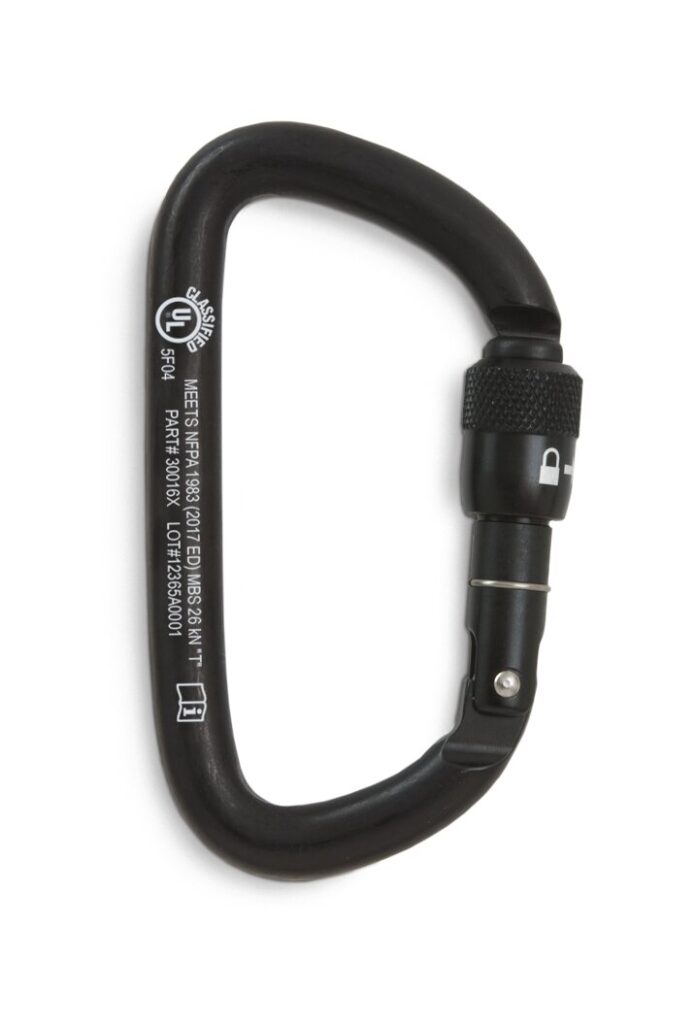

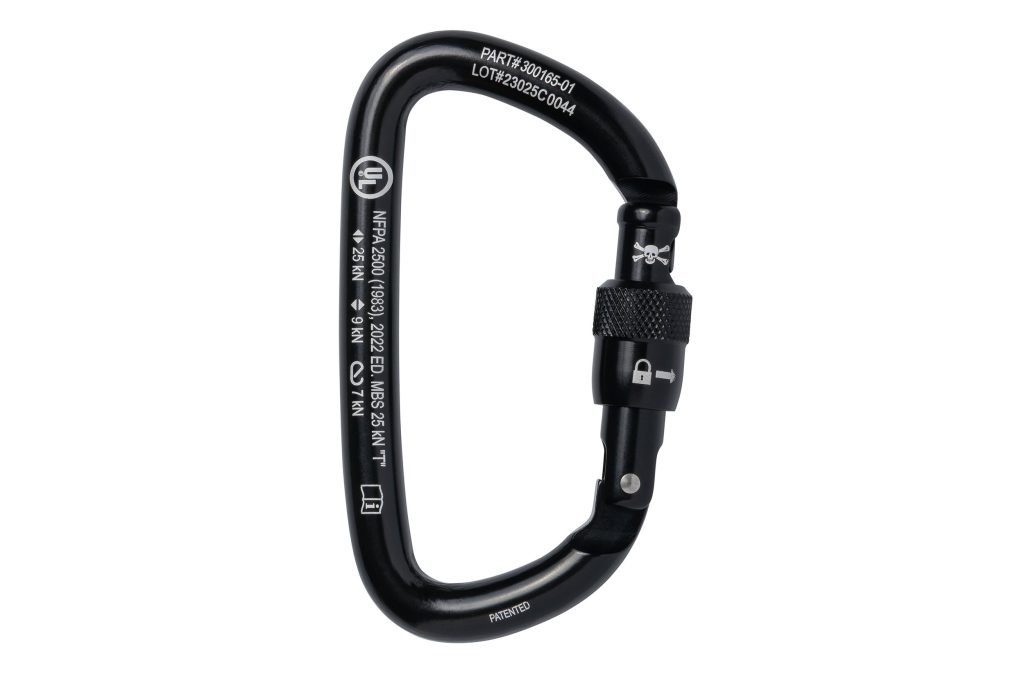

Screw-Lock, Black300165 2.6 OZ (74 G) 1 IN (25 MM) 3.53 IN (89 MM) SCREW-LOCK / BLACK TECHNICAL USE 26 KN (5,845 LBF)$20

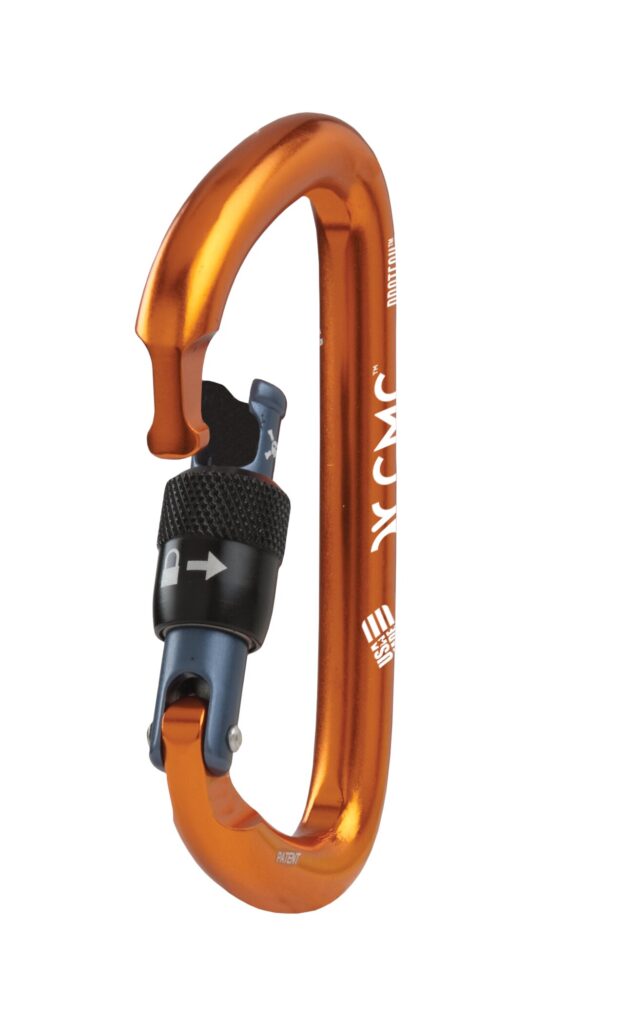

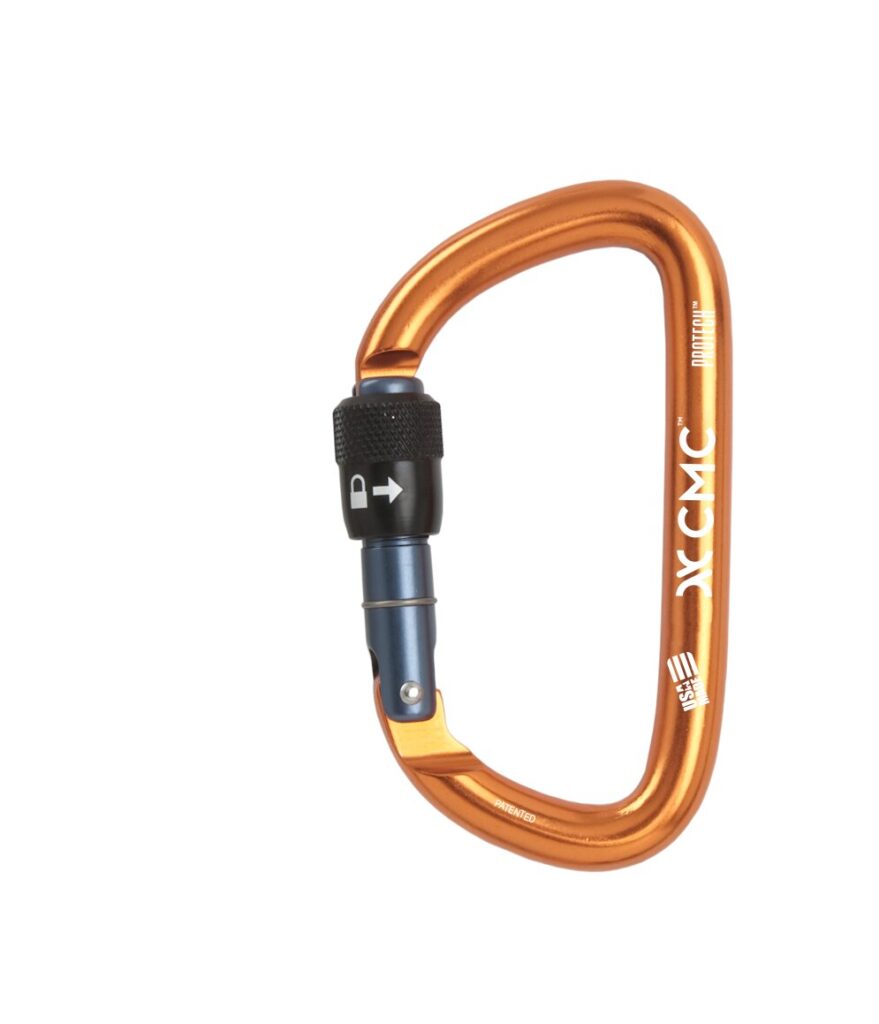

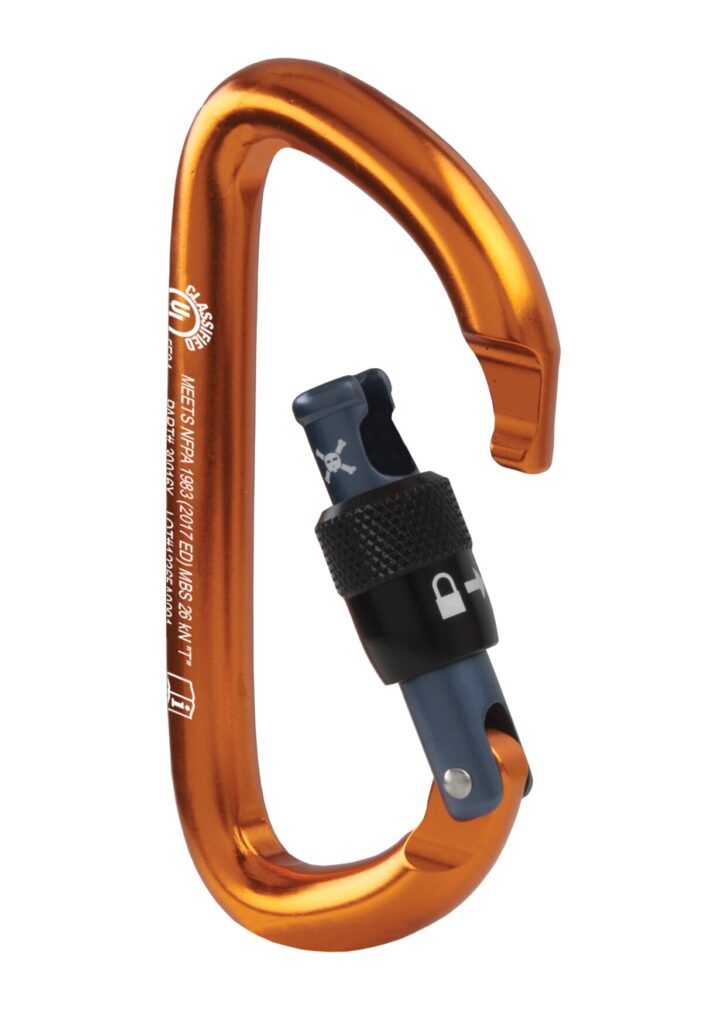

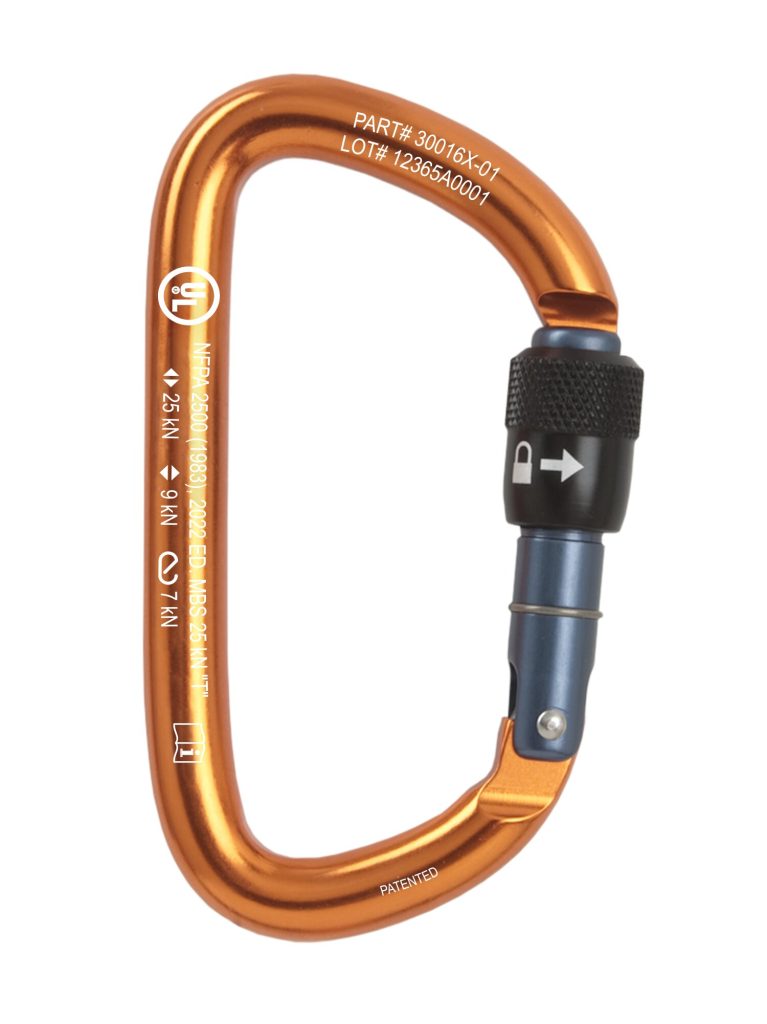

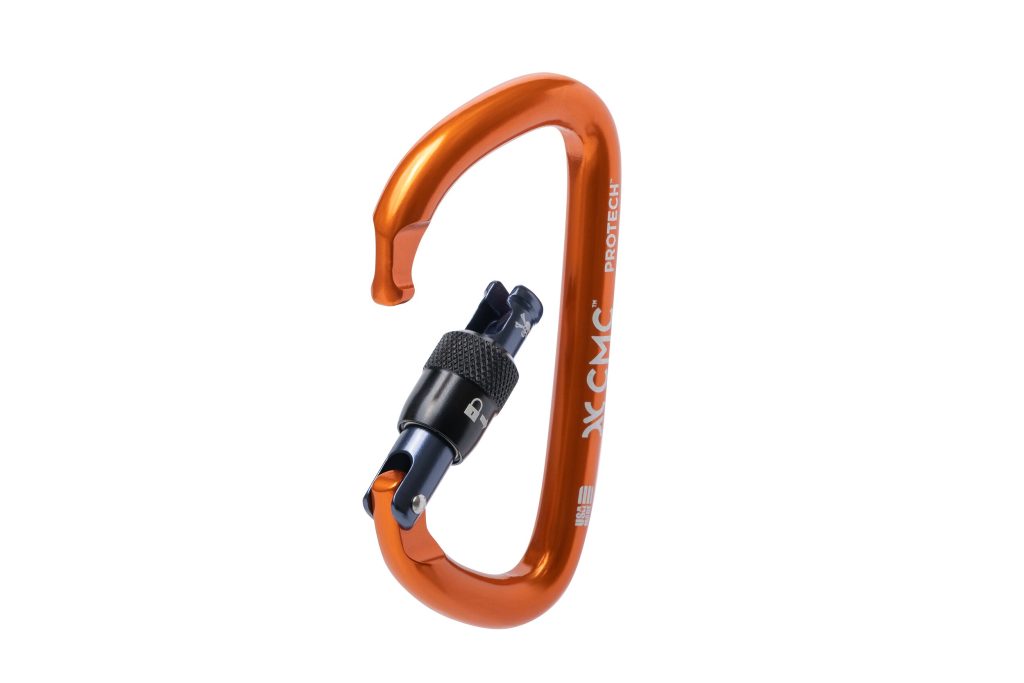

Screw-Lock, Orange300169 2.6 OZ (74 G) 1 IN (25 MM) 3.53 IN (89 MM) SCREW-LOCK / ORANGE TECHNICAL USE 26 KN (5,845 LBF)$20

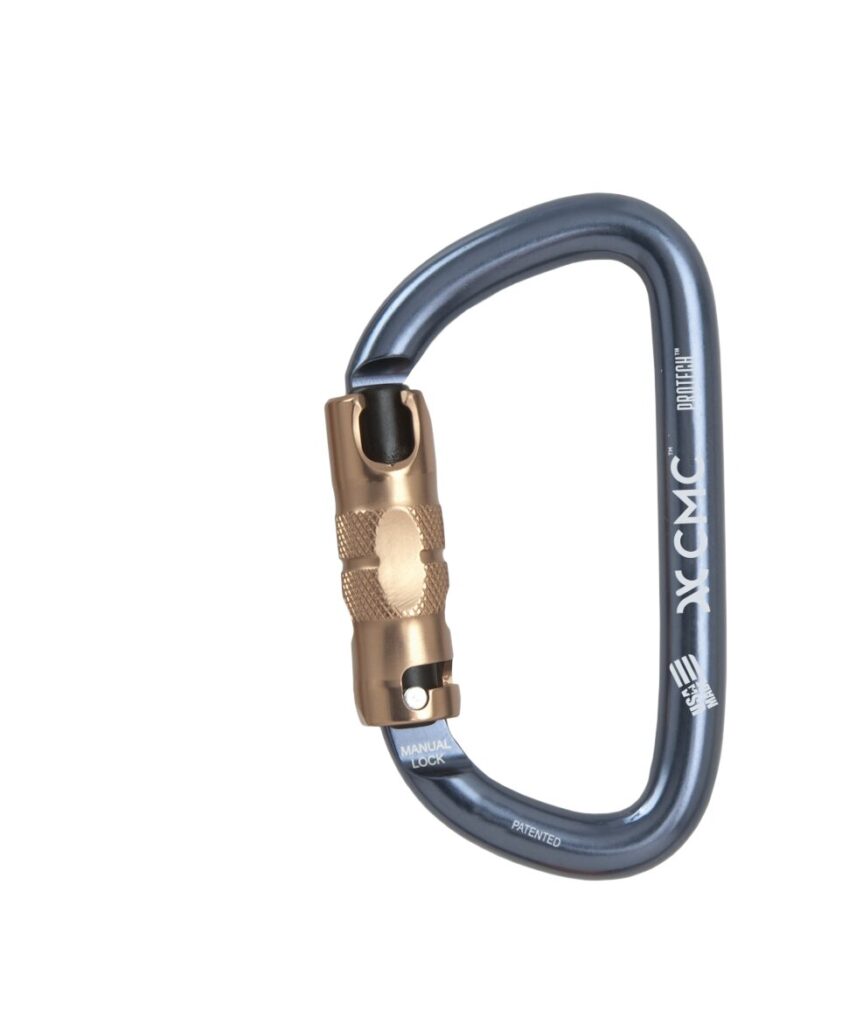

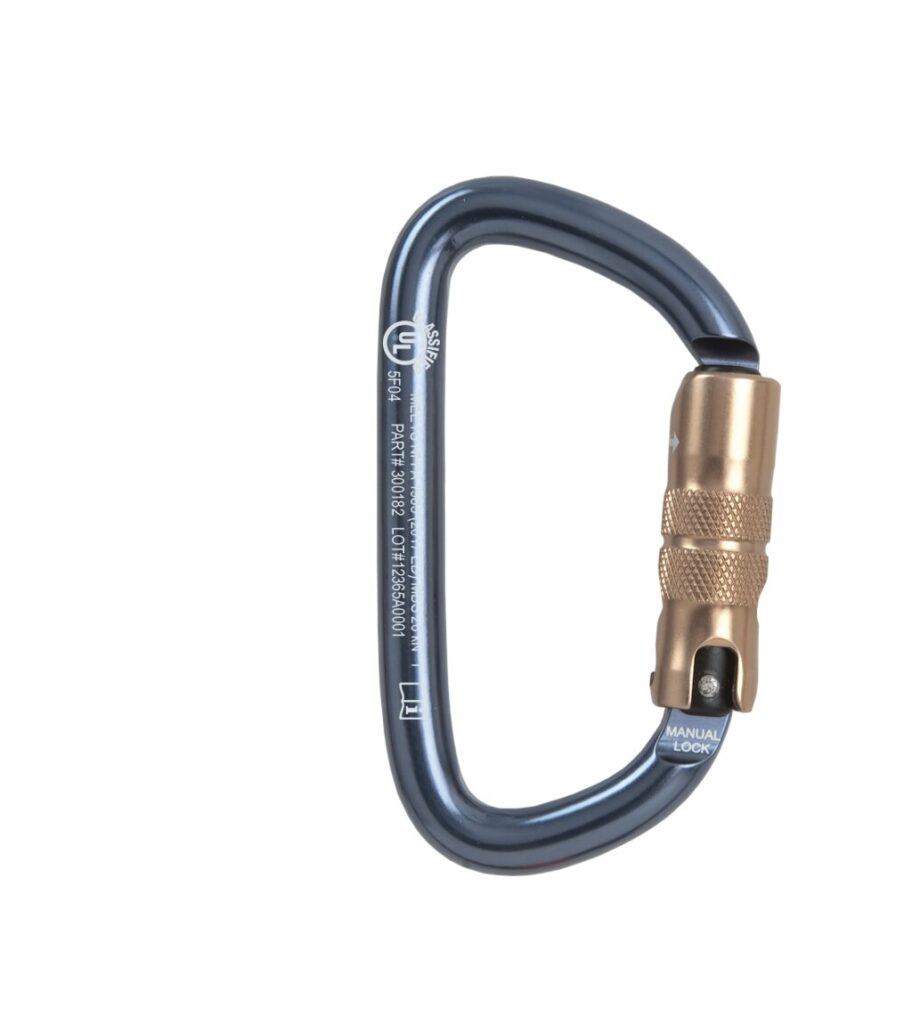

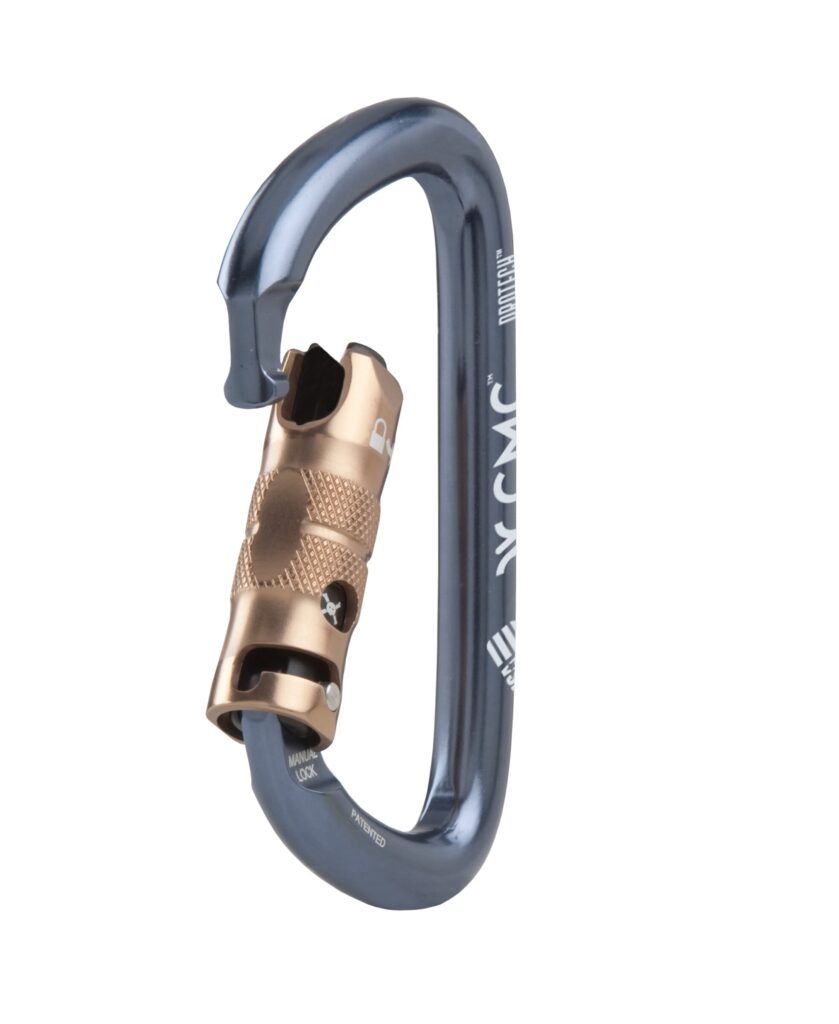

Manual-Lock, Slate300182 2.8 OZ (79 G) 1 IN (25 MM) 3.53 IN (89 MM) MANUAL-LOCK / SLATE TECHNICAL USE 26 KN (5,845 LBF)$25
Manual-Lock, Orange w/Keeper300189 3.6 OZ (102 G) 1 IN (25 MM) 3.53 IN (89 MM) MANUAL-LOCK W/ KEEPER / ORANGE TECHNICAL USE 29 KN (6,519 LBF)$32

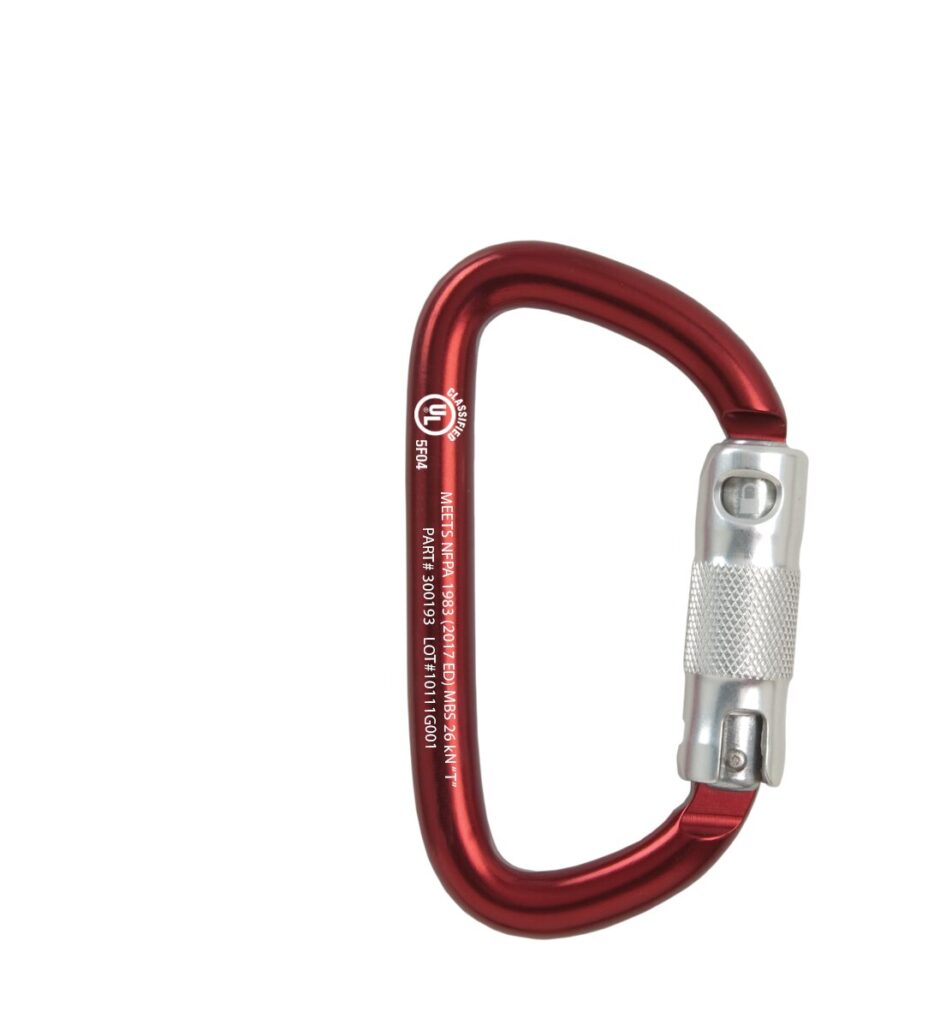

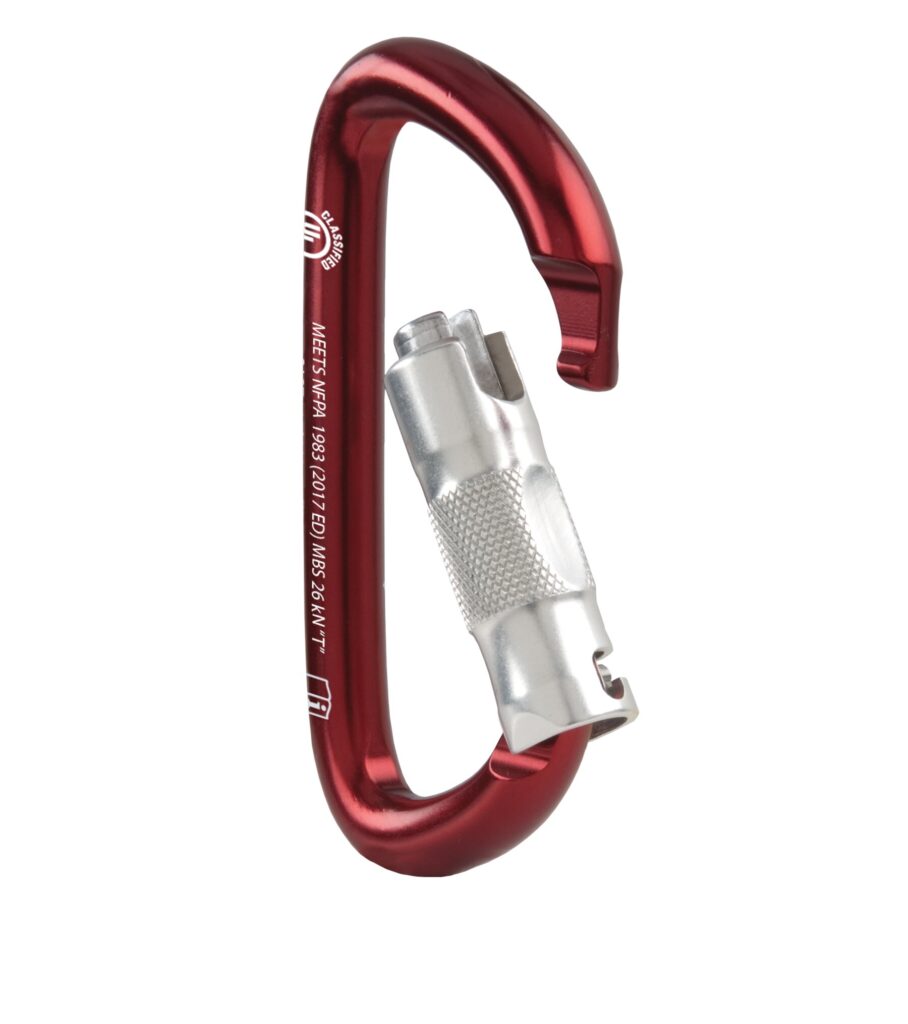

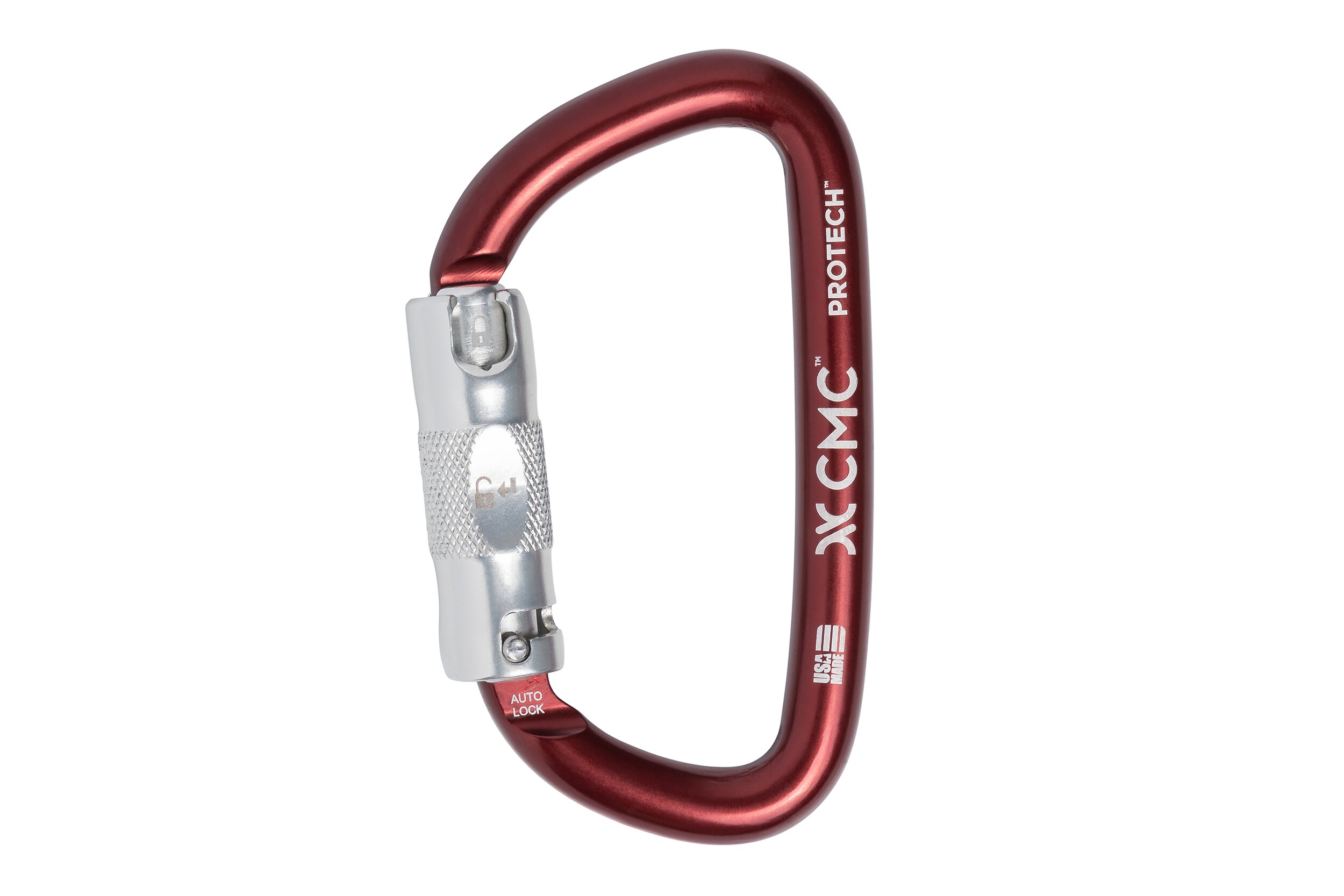

Auto-Lock, Red300193 2.8 OZ (79 G) 1 IN (25 MM) 3.53 IN (89 MM) AUTO-LOCK / RED TECHNICAL USE 26 KN (5,845 LBF)$25

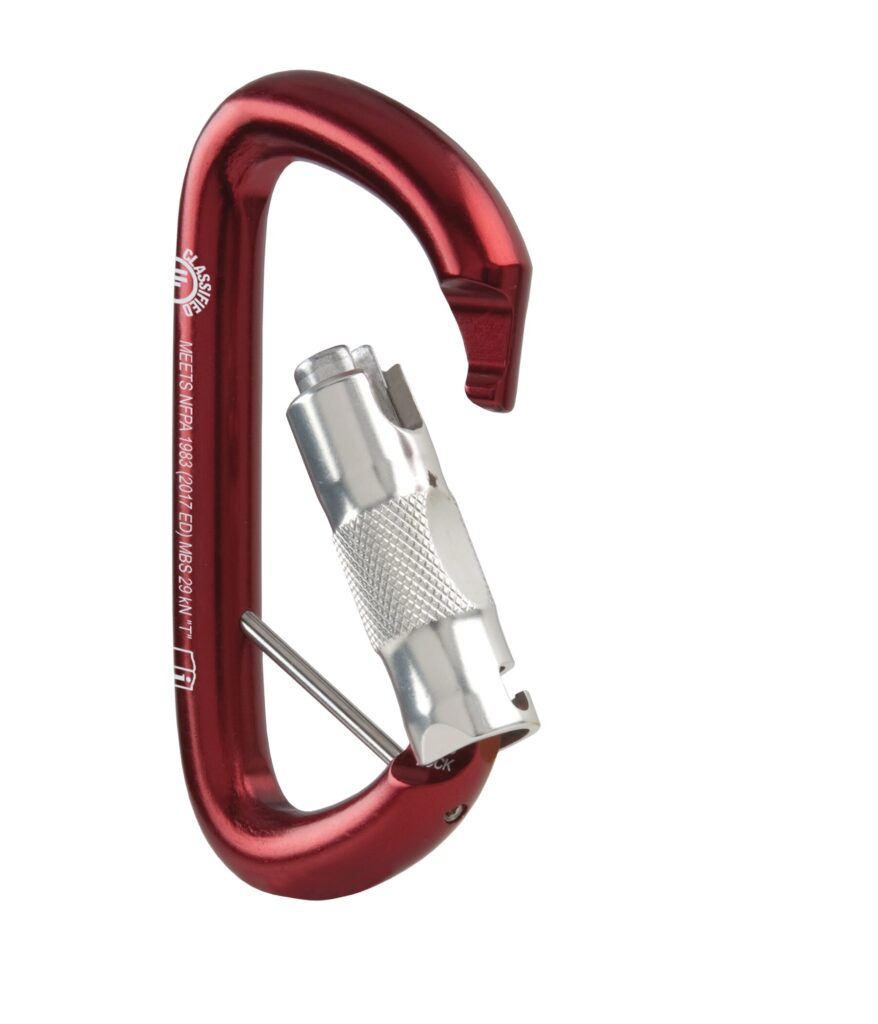

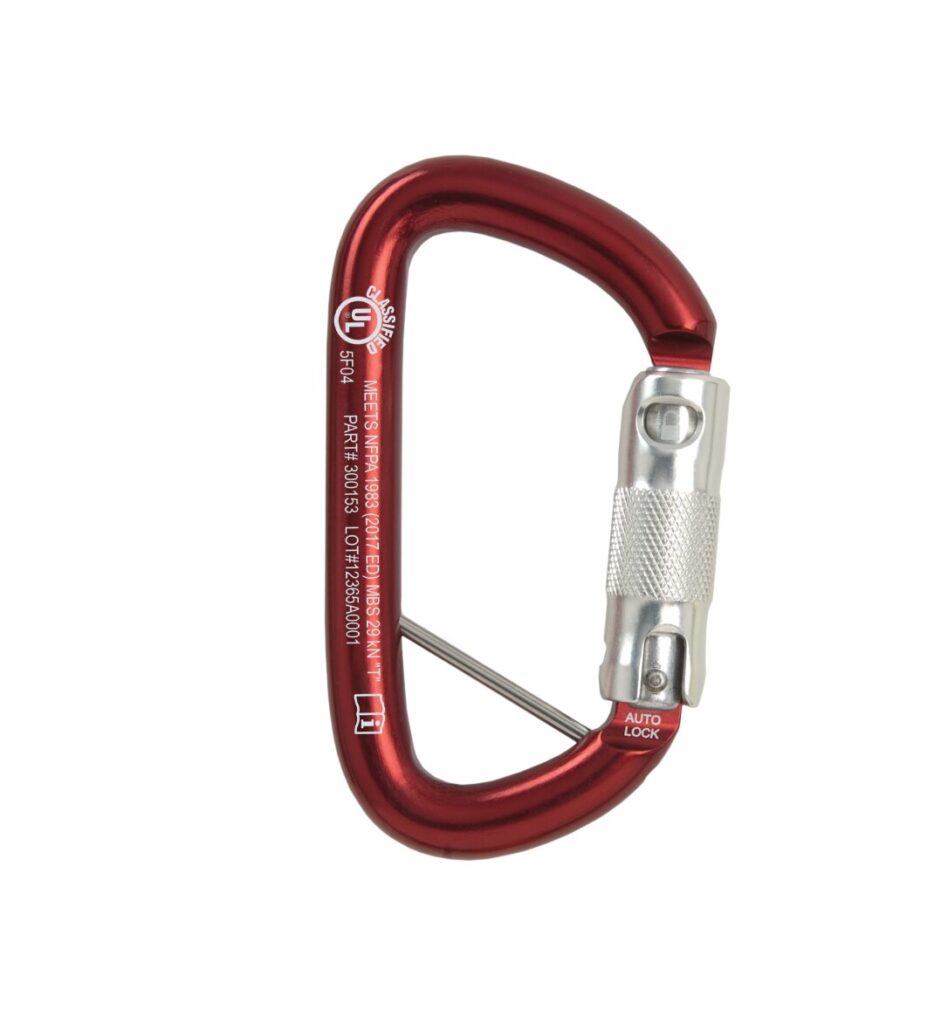

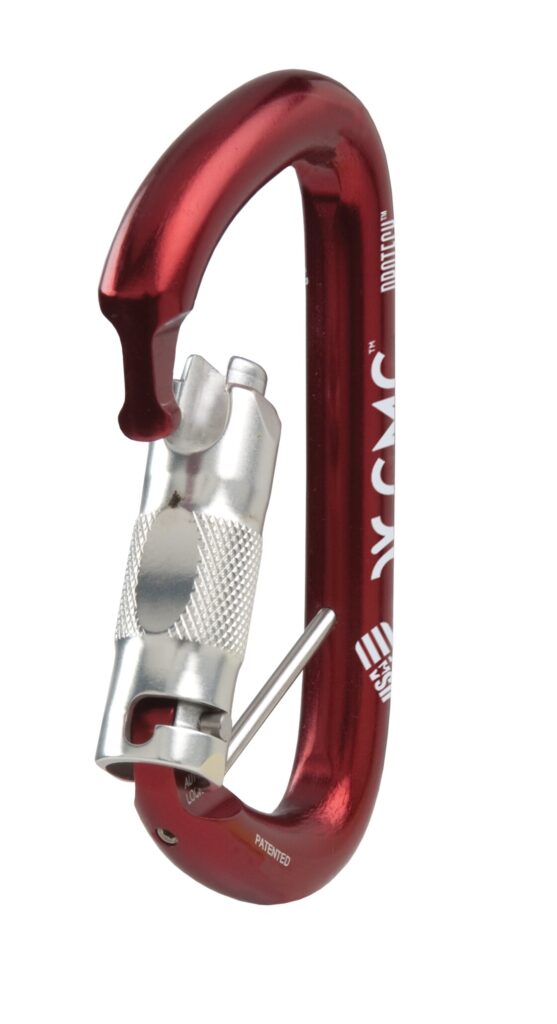

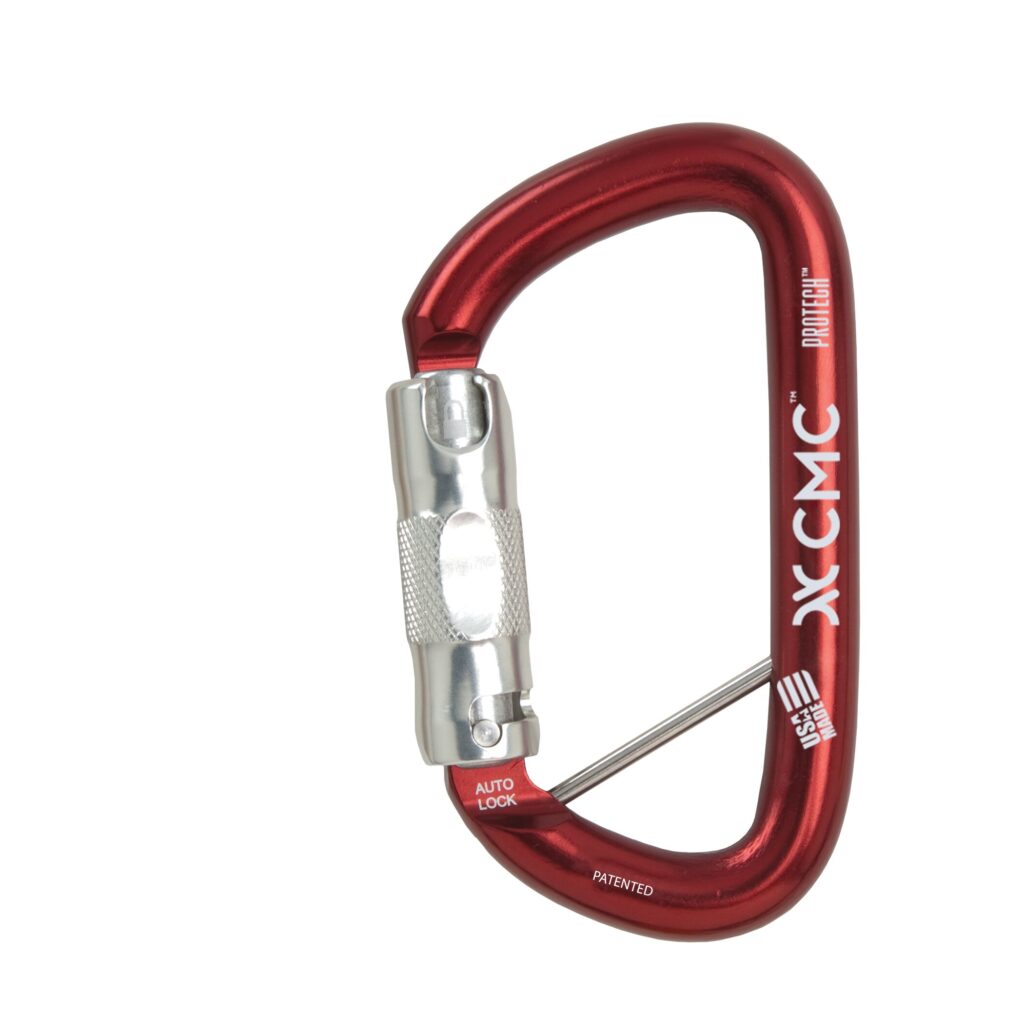

Auto-Lock, Red w/Keeper300153 3.6 OZ (102 G) 1 IN (25 MM) 3.53 IN (89 MM) AUTO-LOCK W/ KEEPER / RED TECHNICAL USE 29 KN (6,519 LBF)$32
Keeper Pin Replacement Set (ProTech)300000 3X PINS, 3X SCREWS, 1X HEX WRENCH NA NA NA NA NA$8
