CMC TECH G™

Designed for access work and rescue operations in demanding environments, the
11 mm CMC Tech G™ has excellent strength to weight properties plus a heat and
abrasion resistant Technora sheath. The durable construction, which features a
dual-sheath design, is lightweight and has low elongation for predictable and reliable
performance that holds up in tough conditions.

The dual-sheath design features a 100-percent Technora aramid fiber outer sheath
(including the tracers) for enhanced heat and cut resistance while the inner polyester
sheath has bright orange tracers to help technicians easily identify any compromises
to the rope.

The heat-resistant sheath combined with the rope’s G-rated strength make it ideal for
rescue applications where flashover fires or other thermal events may occur. These
same properties also make it an excellent choice for industrial applications such as
welding work or rigging near heated pipes. Tech G also keeps its shape under tension
and remains round in mechanical devices even under extreme conditions.

Features:

• 11 mm (7/16 in) G-Rated rope with high strength and low volume
• Dual sheath construction provides outstanding protection
• Excellent resistance to heat, and abrasion
• 100% Technora sheath with Technora tracers for exceptional durability
• Polyester inner sheath has orange tracers to easily identify outer sheath damage
• Nylon core delivers high strength, smooth handling, and low elongation
• Remains round even in mechanical devices and extreme conditions
• Inner sheath and core have a standalone breaking strength of 5,000 lb

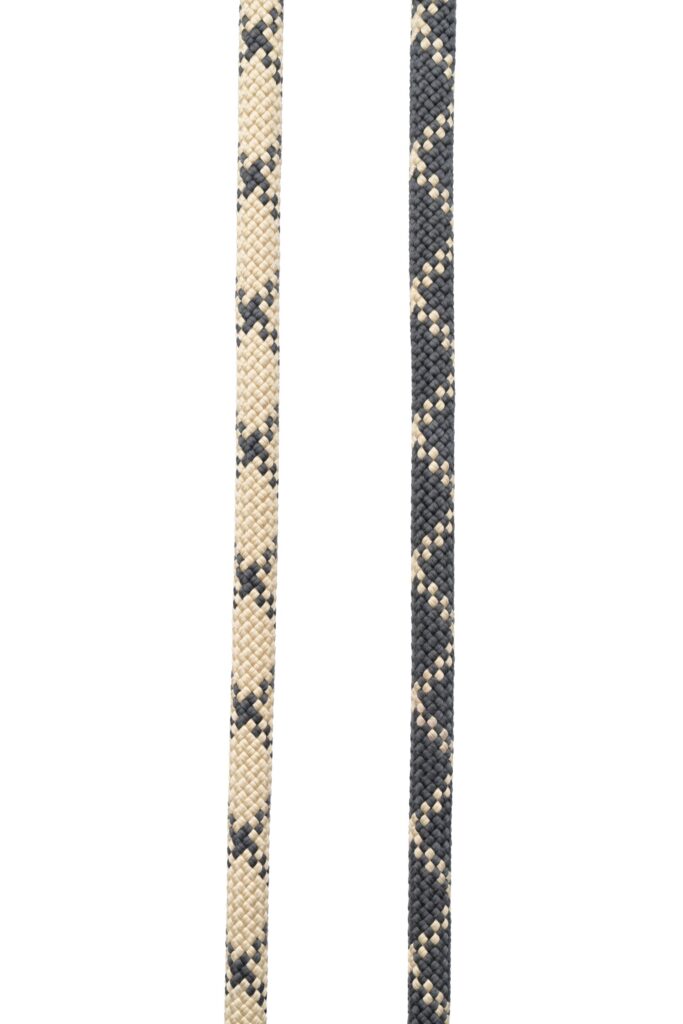

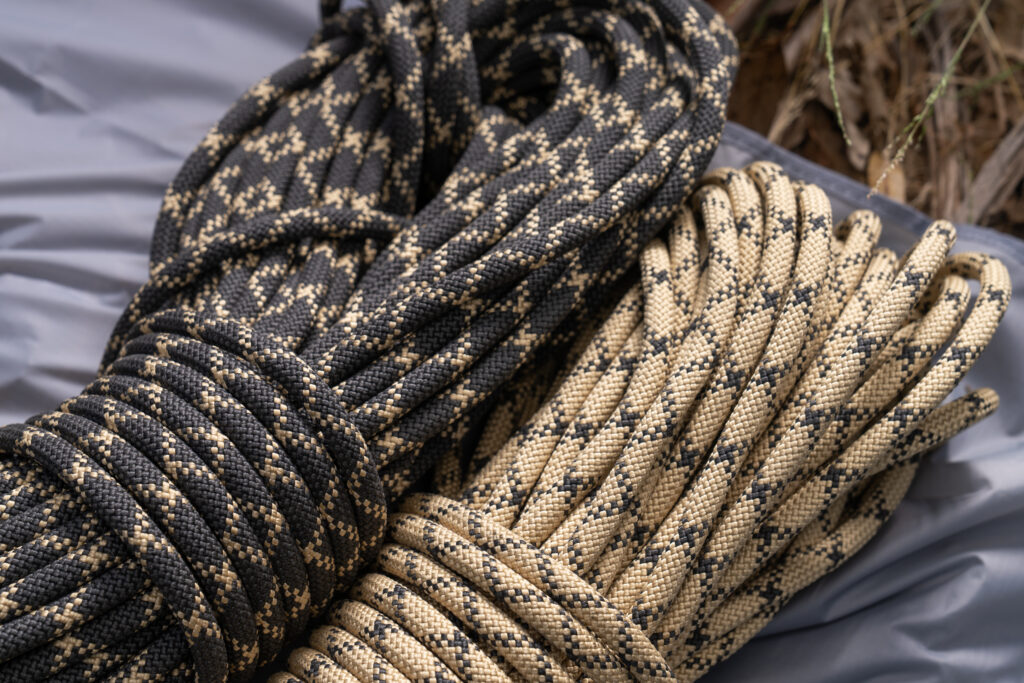

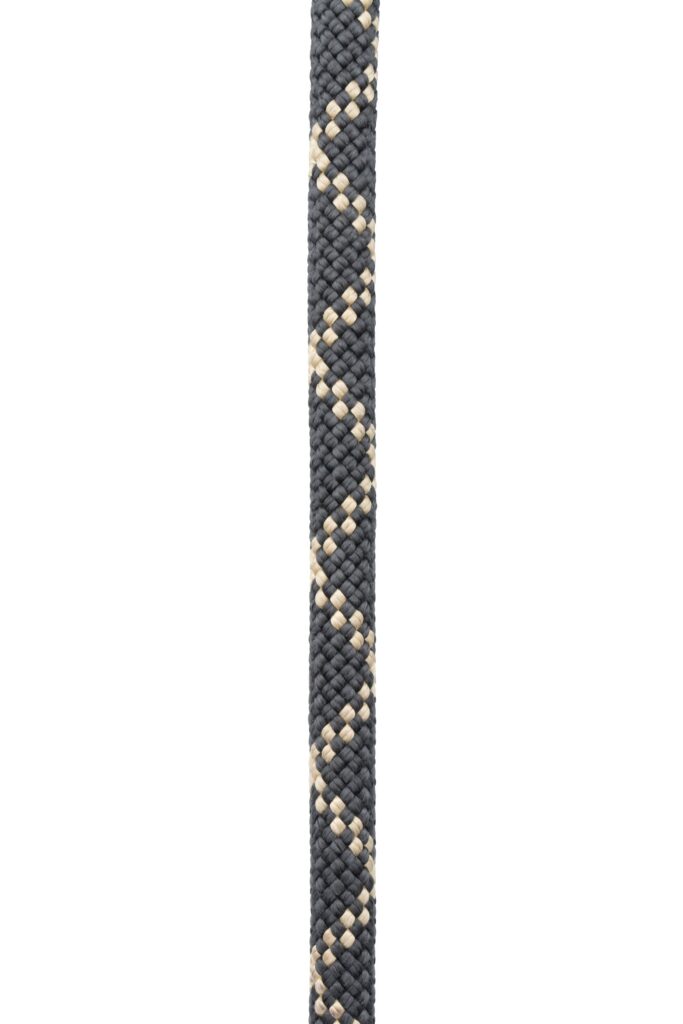

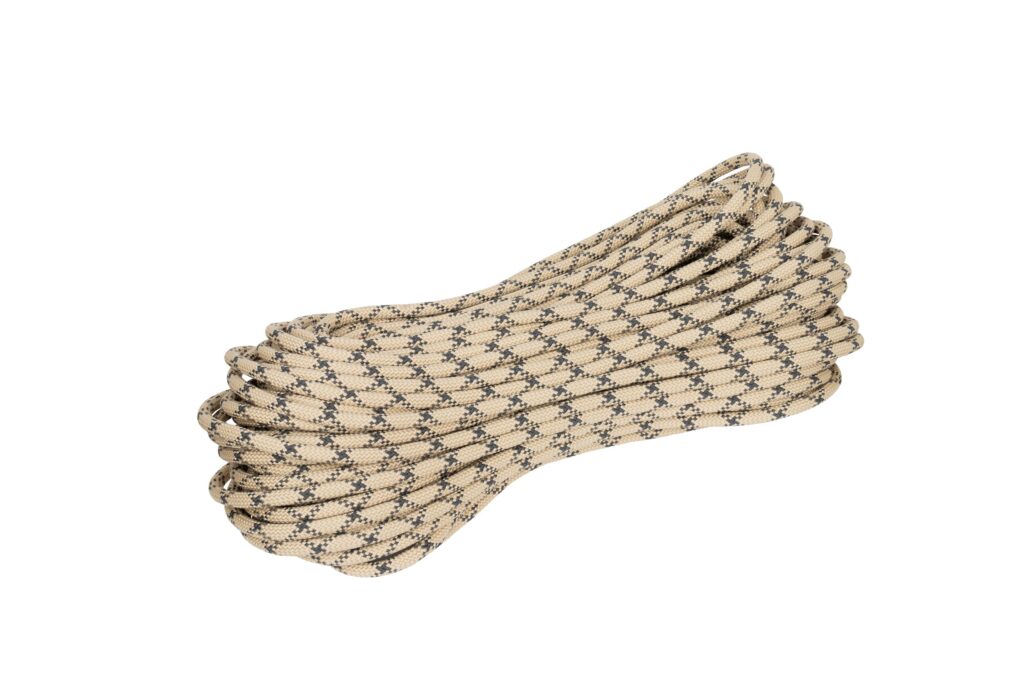

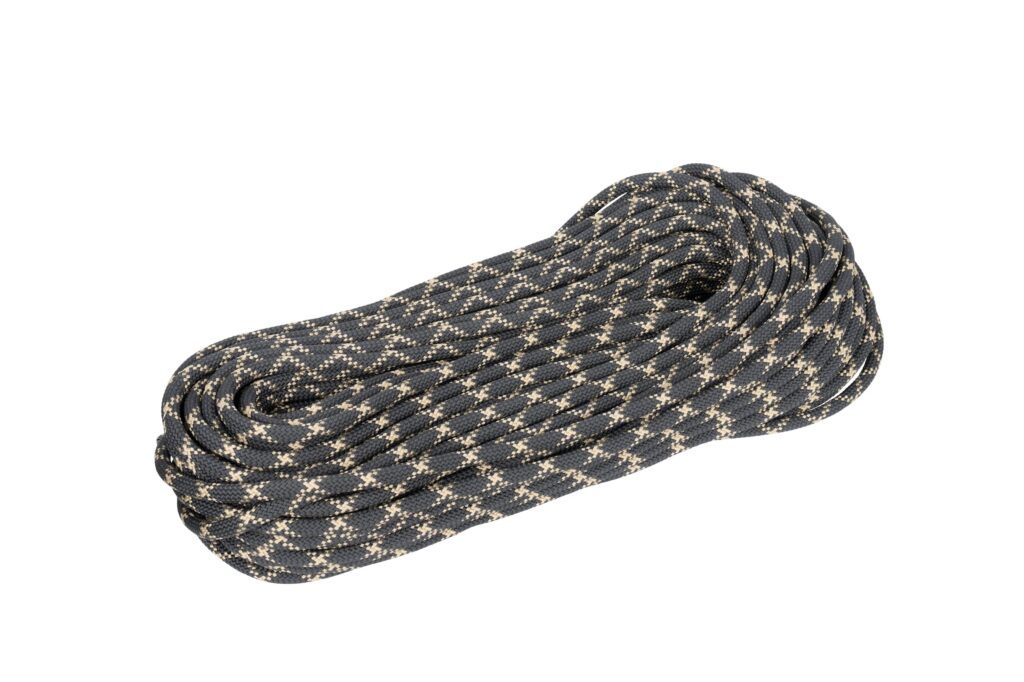

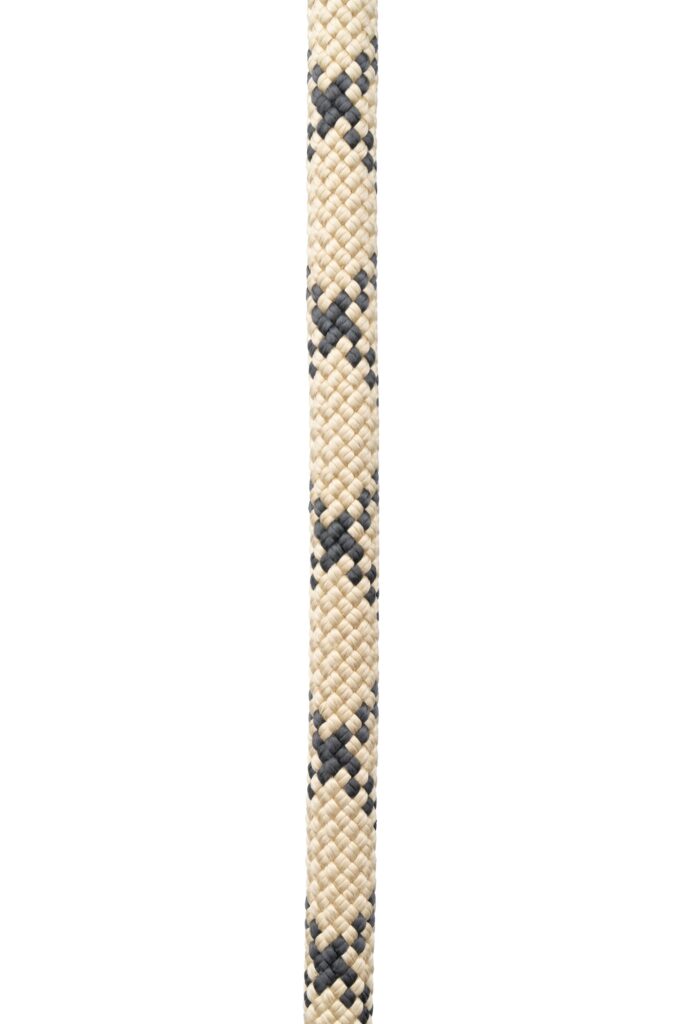

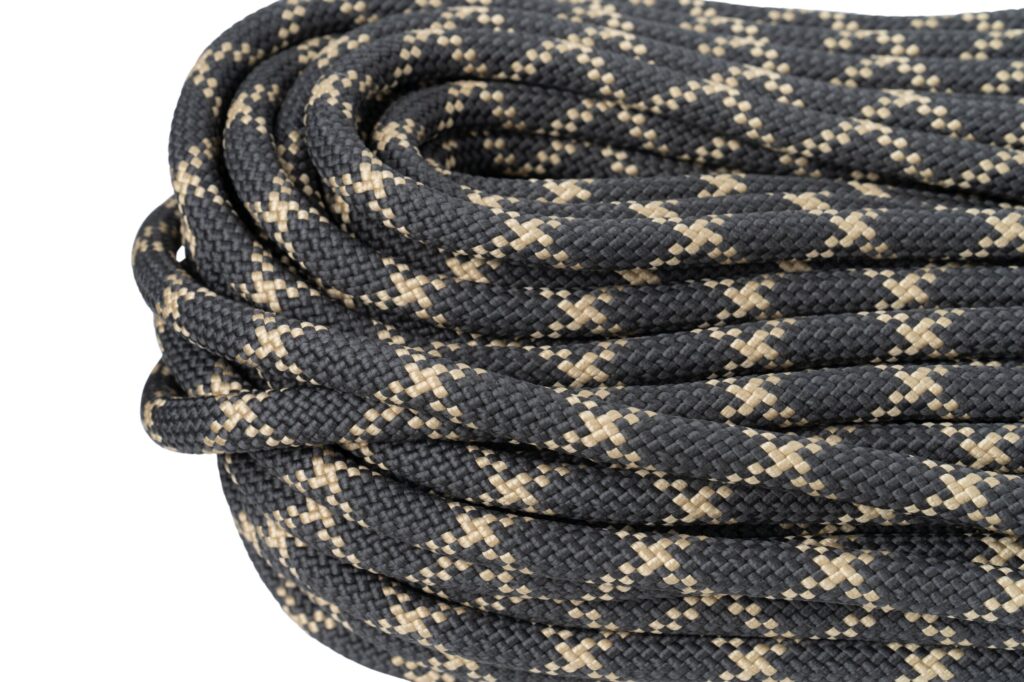

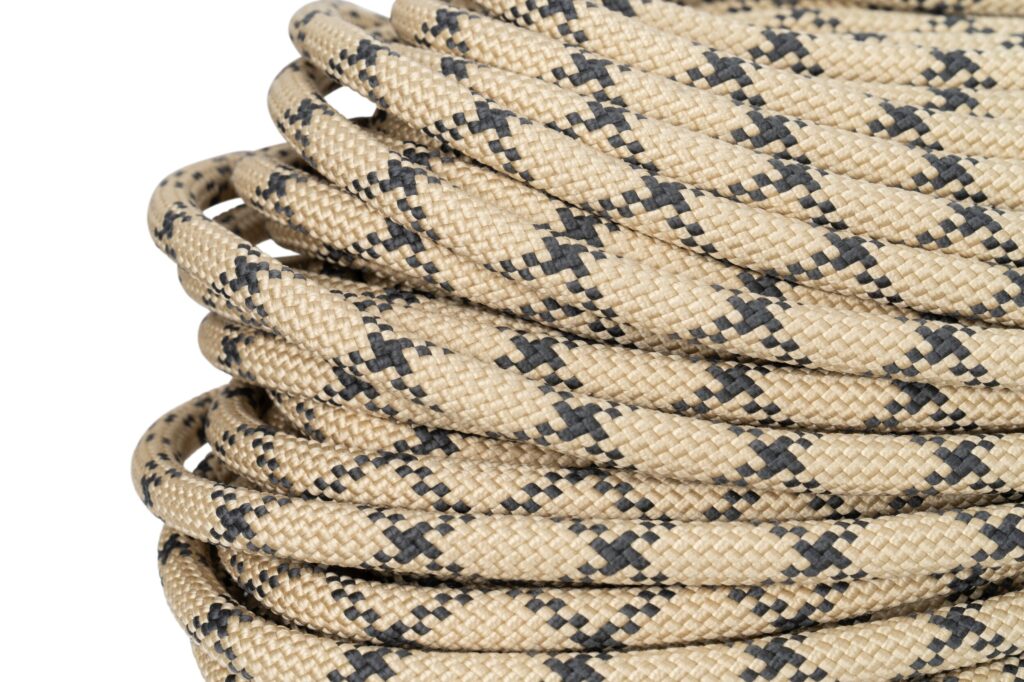

• Available in Black or Tan with Technora tracers

Specifications:

• Rope MBS: 40.2 kN (9,032 lbf)
• Certification: NFPA General Use
• Kernmantle Construction
  • Sheath (Outer): Technora
  • Sheath (Inner): Polyester
  • Core: Nylon
• Elongation (Per UL Classification)
  • 2.4% @ 1.35 kN (300 lbf)
  • 4.6% @ 2.7 kN (600 lbf)
  • 7.0% @ 4.4 kN (1,000 lbf)
• Made in the USA
