PROSTEEL™ CARABINERS

Learn More

Strong and durable, CMC ProSteel Carabiners are classified to NFPA General Use and have a carbon steel body with a high breaking strength. Where noted, certain models are also certified to ANSI and include a reinforced gate for lateral stress. Designed with a keylock system, wide gate opening, glove-friendly sleeve, and burnished finish, CMC ProSteel Carabiners are built for heavy duty work in harsh environments, yet offer easy handling for everyday applications. Now available in gray with a new Zinc-Nickel treatment that provides double corrosion resistance from the prior black plating (test carried out in salt spray in accordance with UNI EN ISO 9227), greater scratch resistance, longer life, more uniform and modern finish, and less friction on cords and textile devices. For additional options, check out our DNA Steel Carabiners.

General Features:

Carbon steel carabiner with high tensile strength
Wide gate opening for easy loading and unloading
Keylock system prevents snagging on rope and bolts
Sleeve is easy to open even wearing gloves
Burnished finishing for greater visibility of markings
Classified to NFPA General Use, select models also ANSI

Model Specifics:

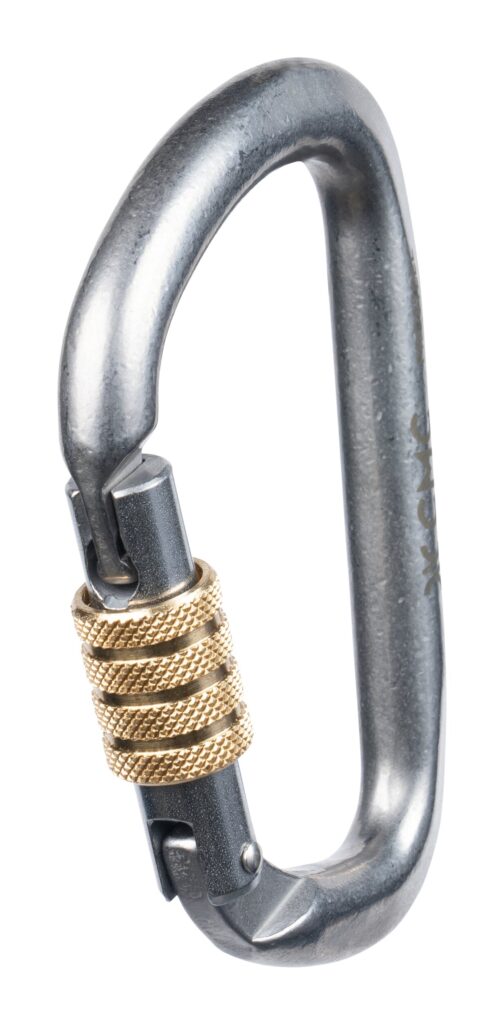

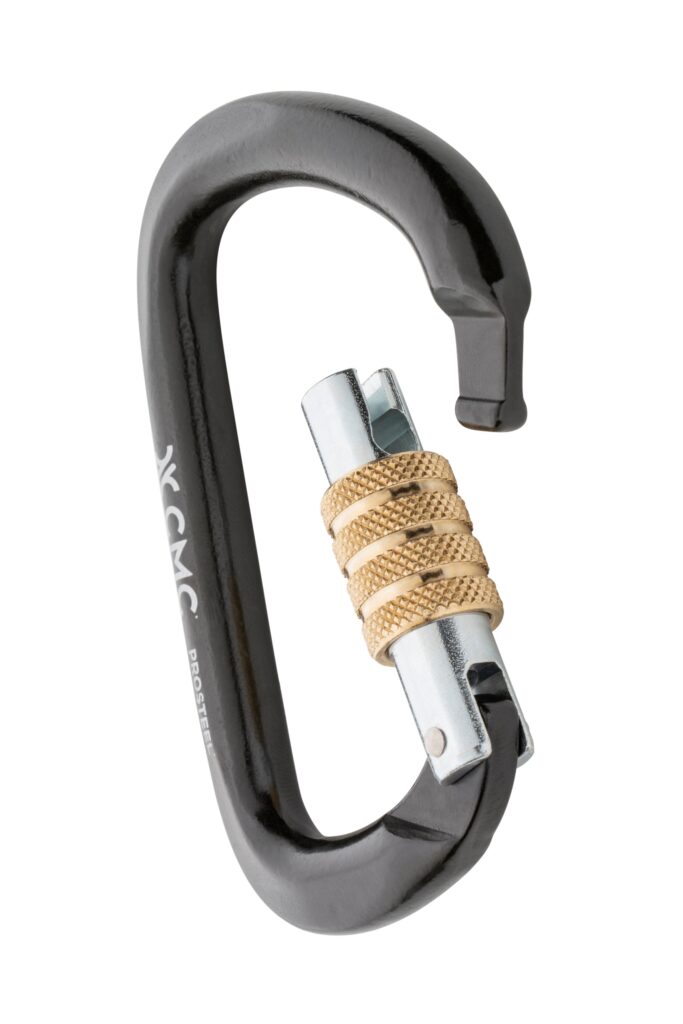

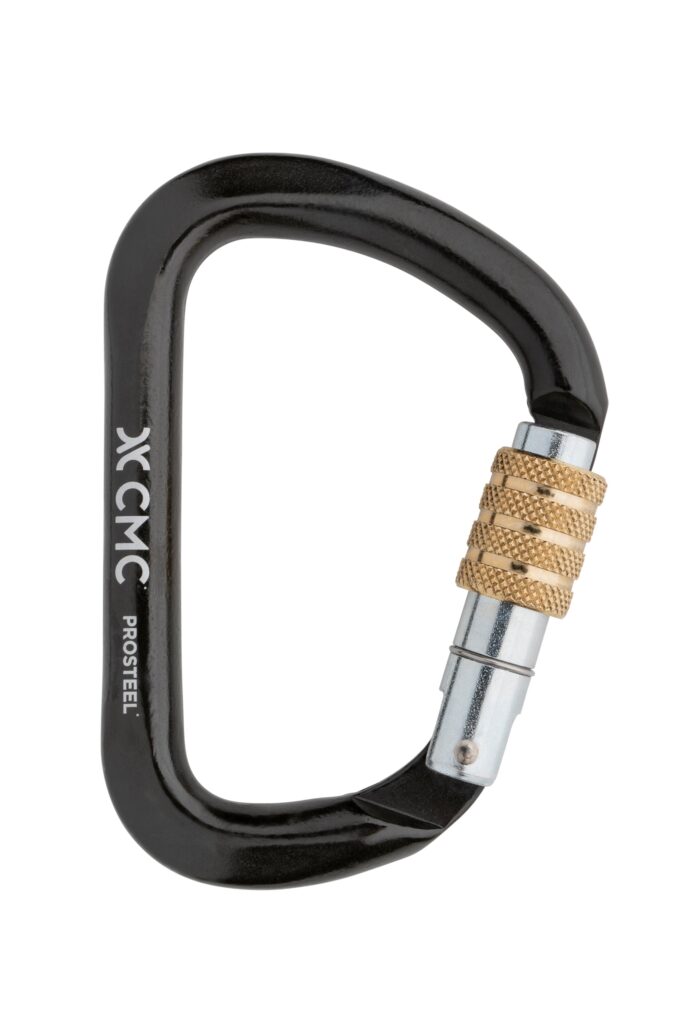

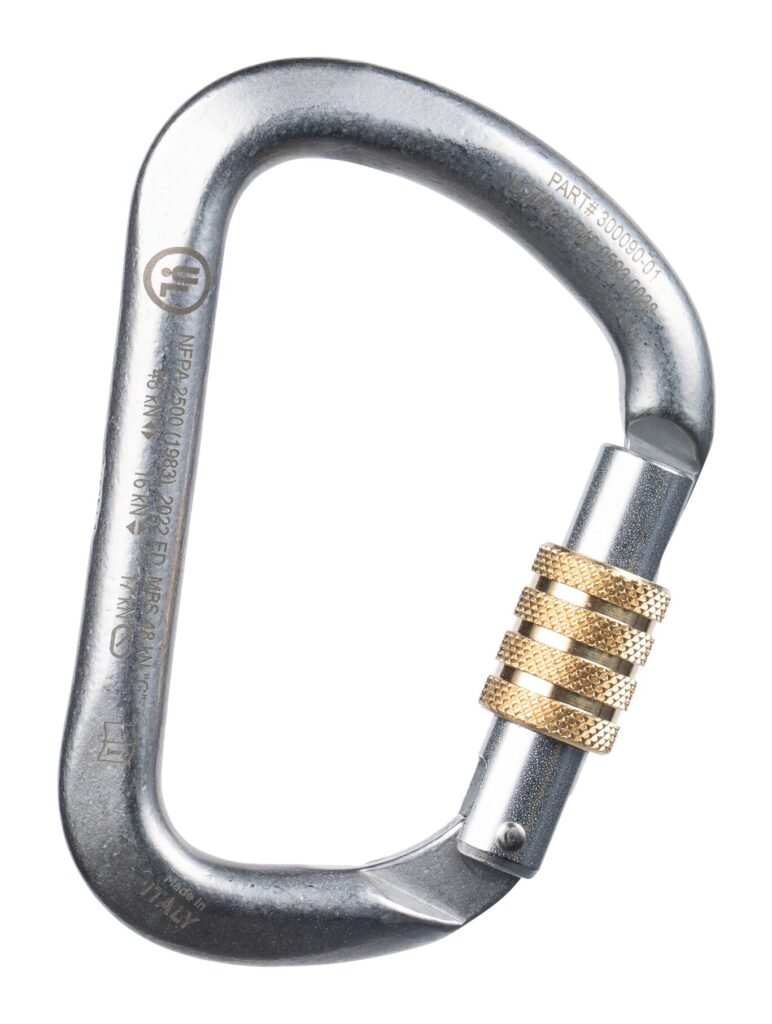

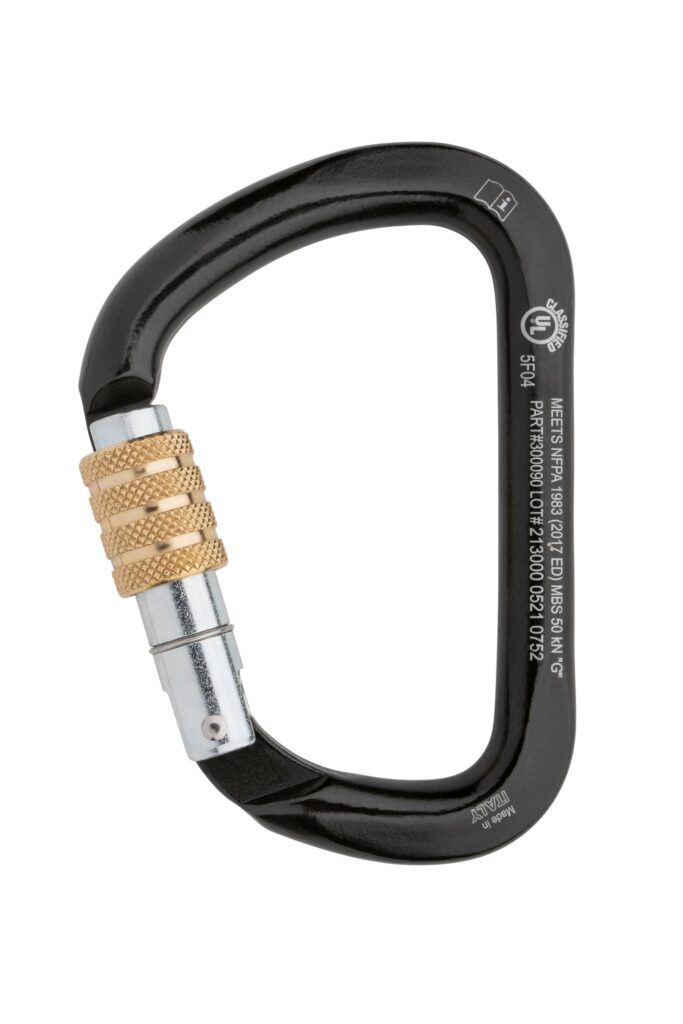

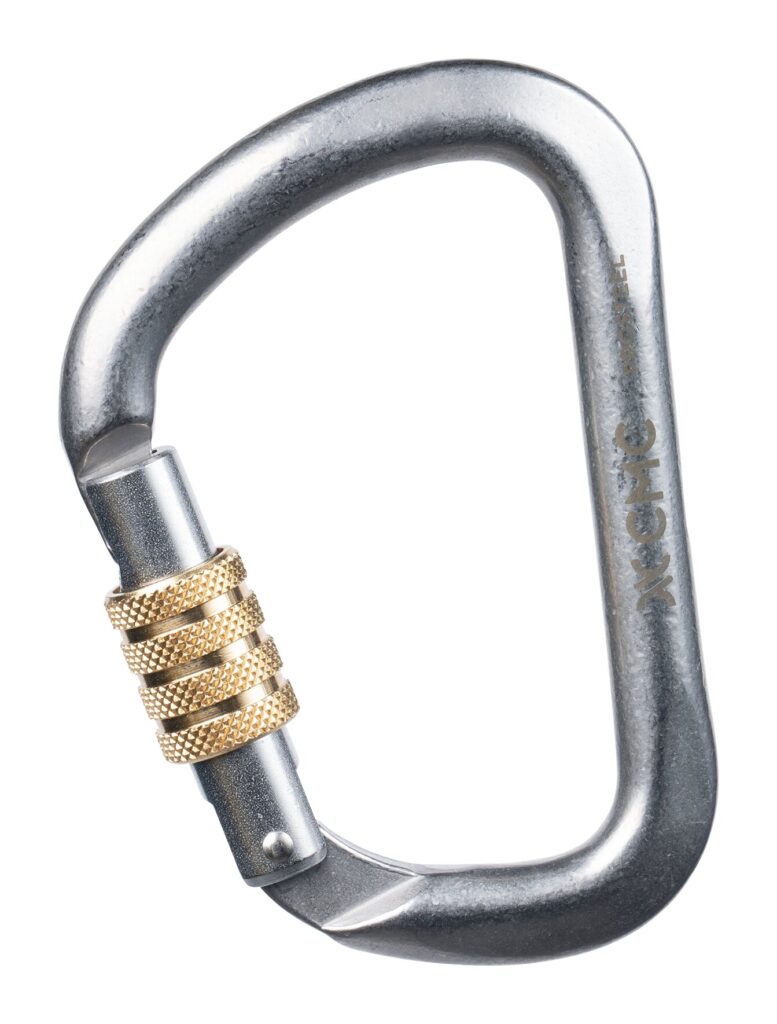

Screw-Lock D Carabiners
- Orients load distribution along the major axis
- Non ANSI gate is low profile for small attachment points
- Smooth, high-friction screw sleeve, good for gloves

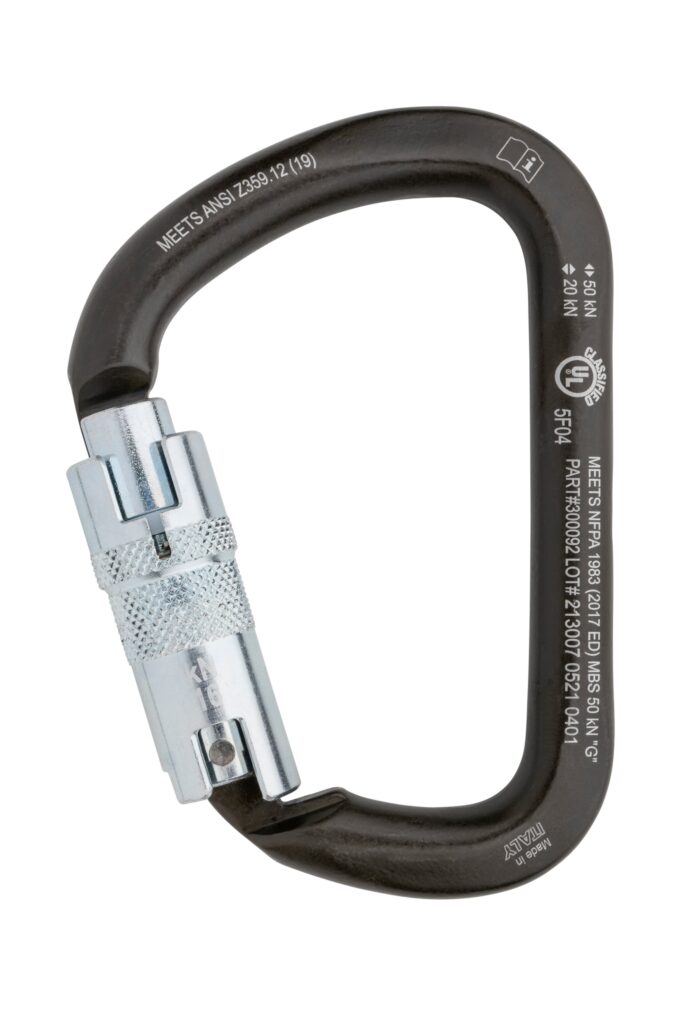

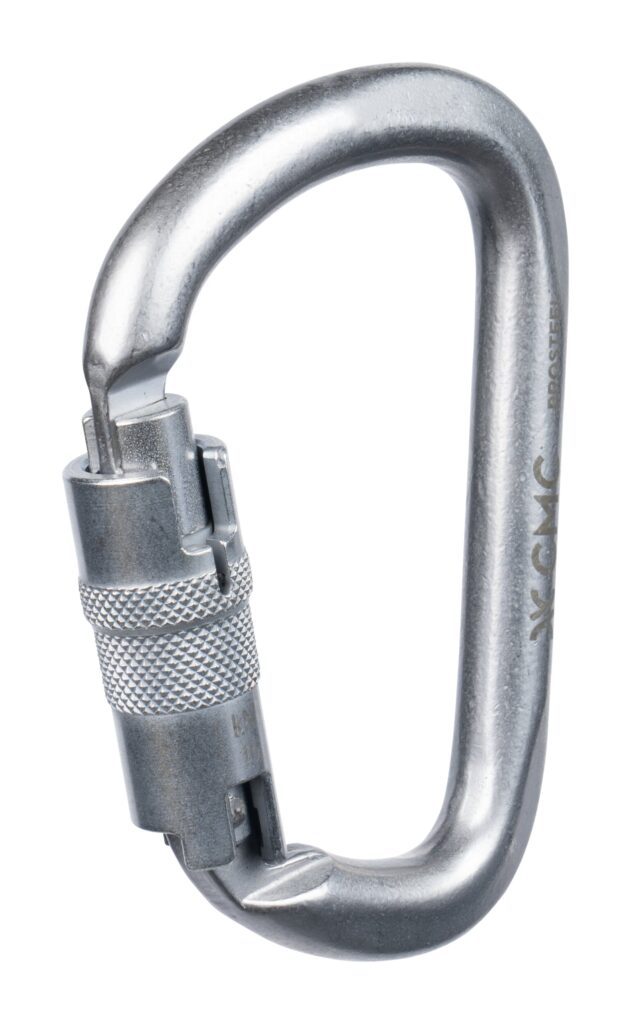

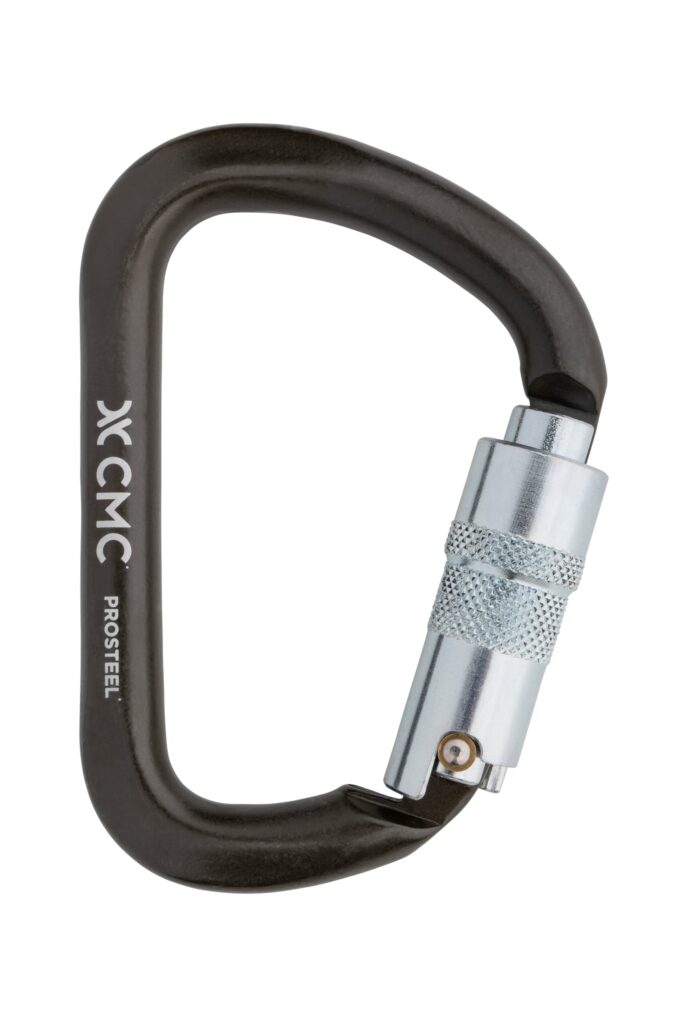

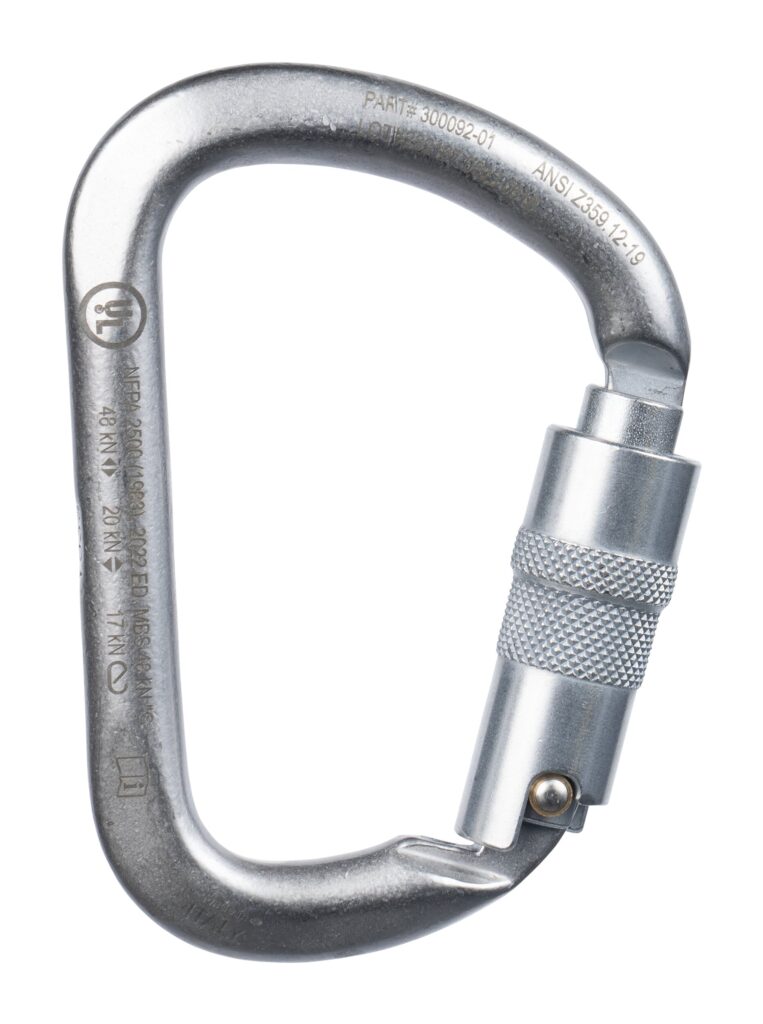

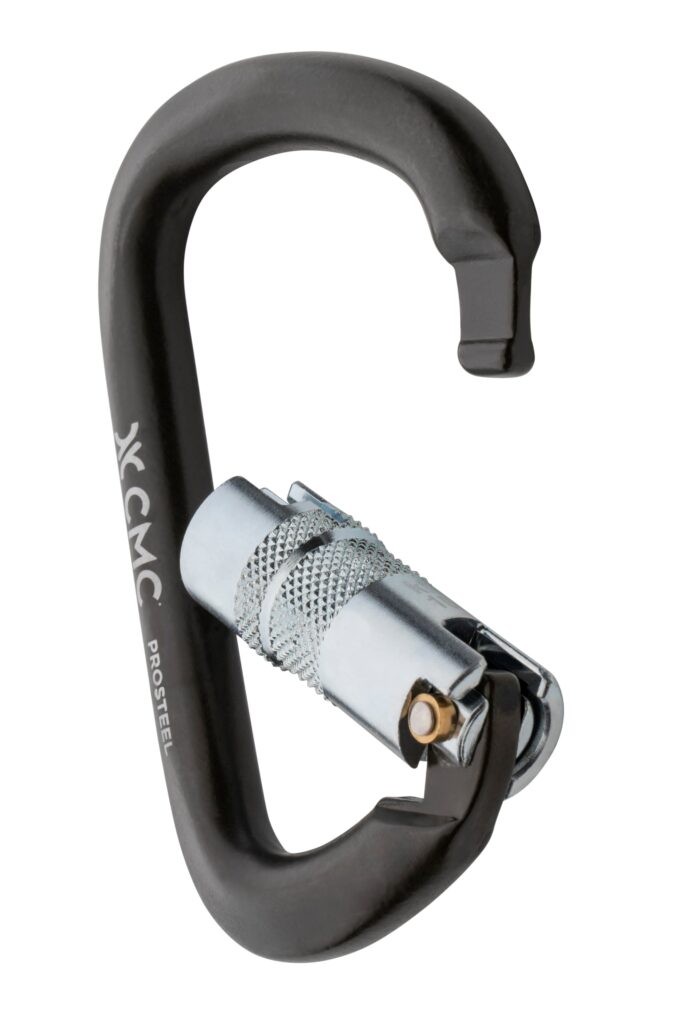

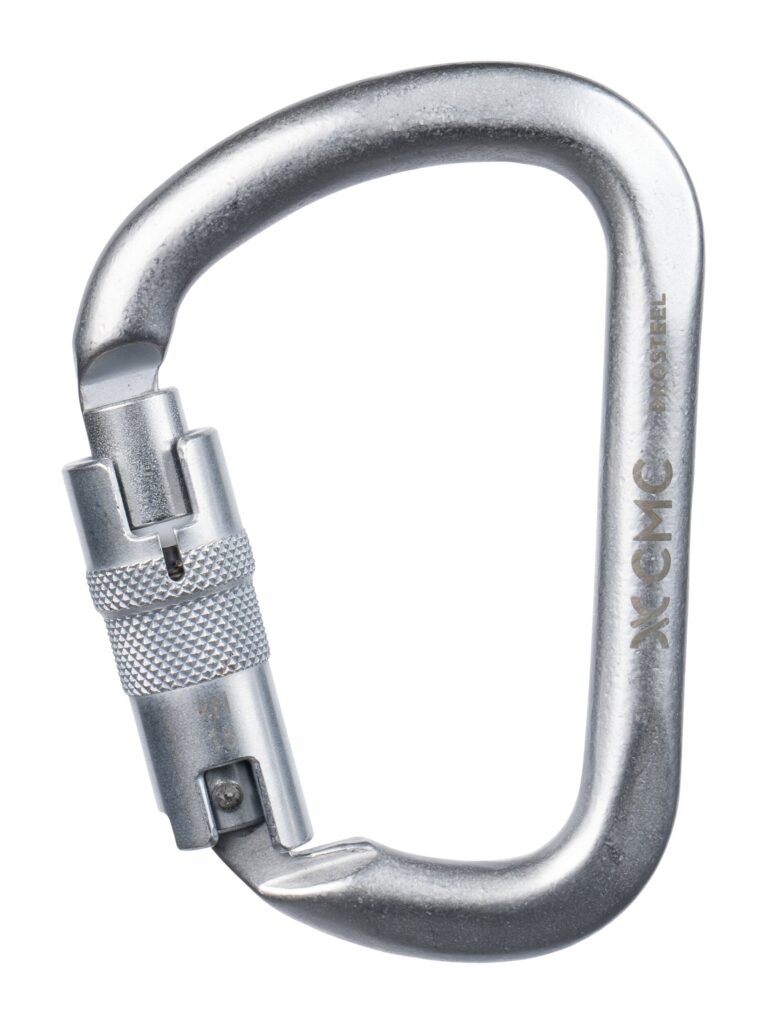

Auto-Lock D ANSI Carabiner
- Orients load distribution along the major axis
- Auto-lock sleeve, reinforced for lateral stress per ANSI
- Safety of 3 movements to open: lift, turn, and push

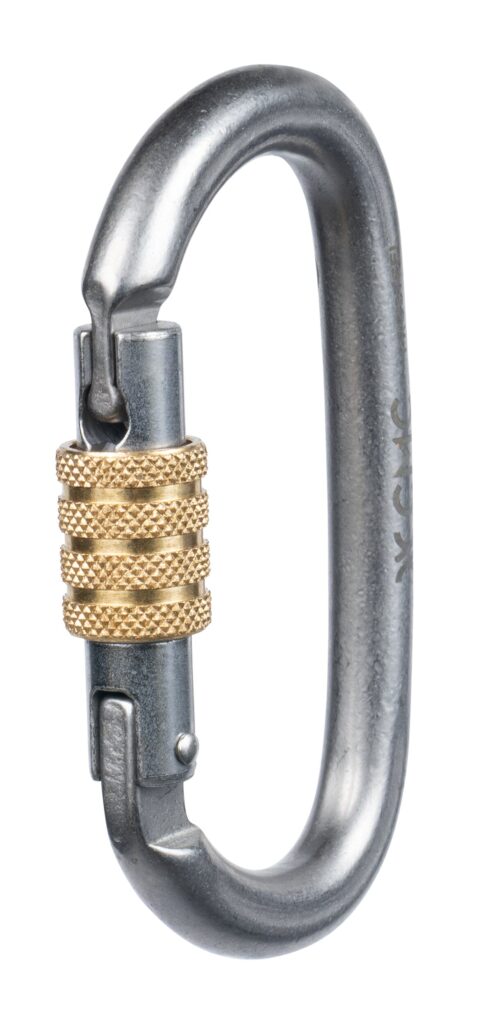

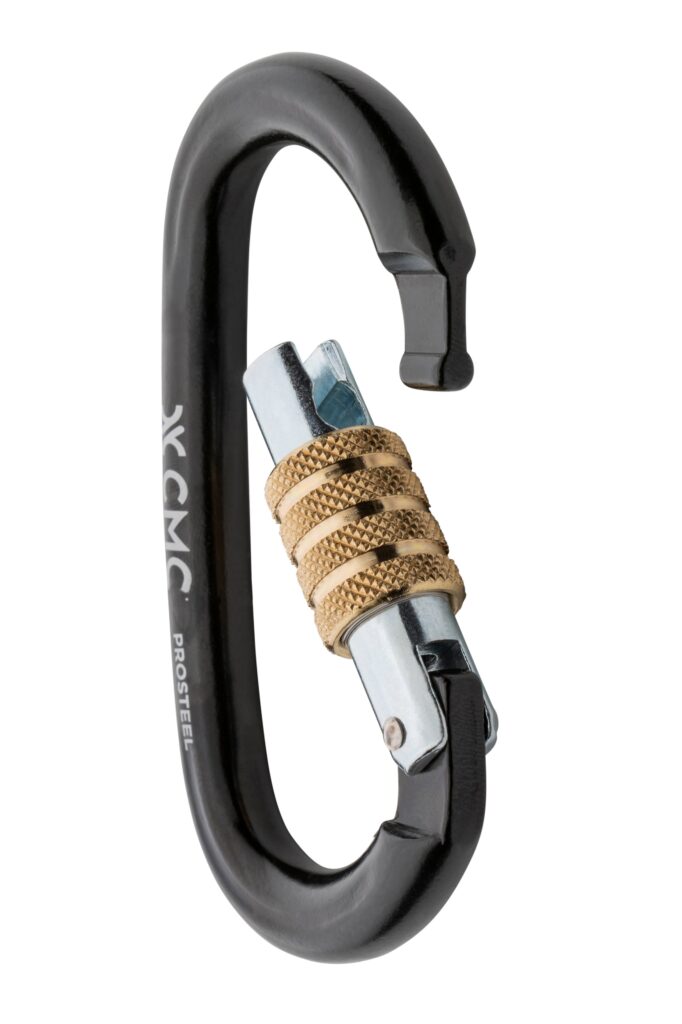

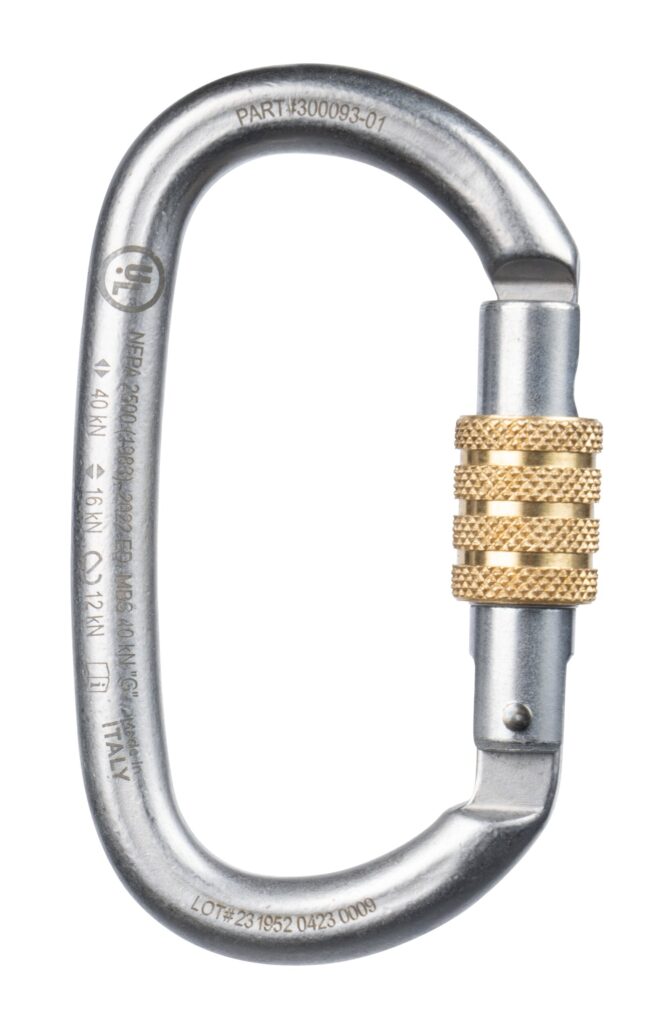

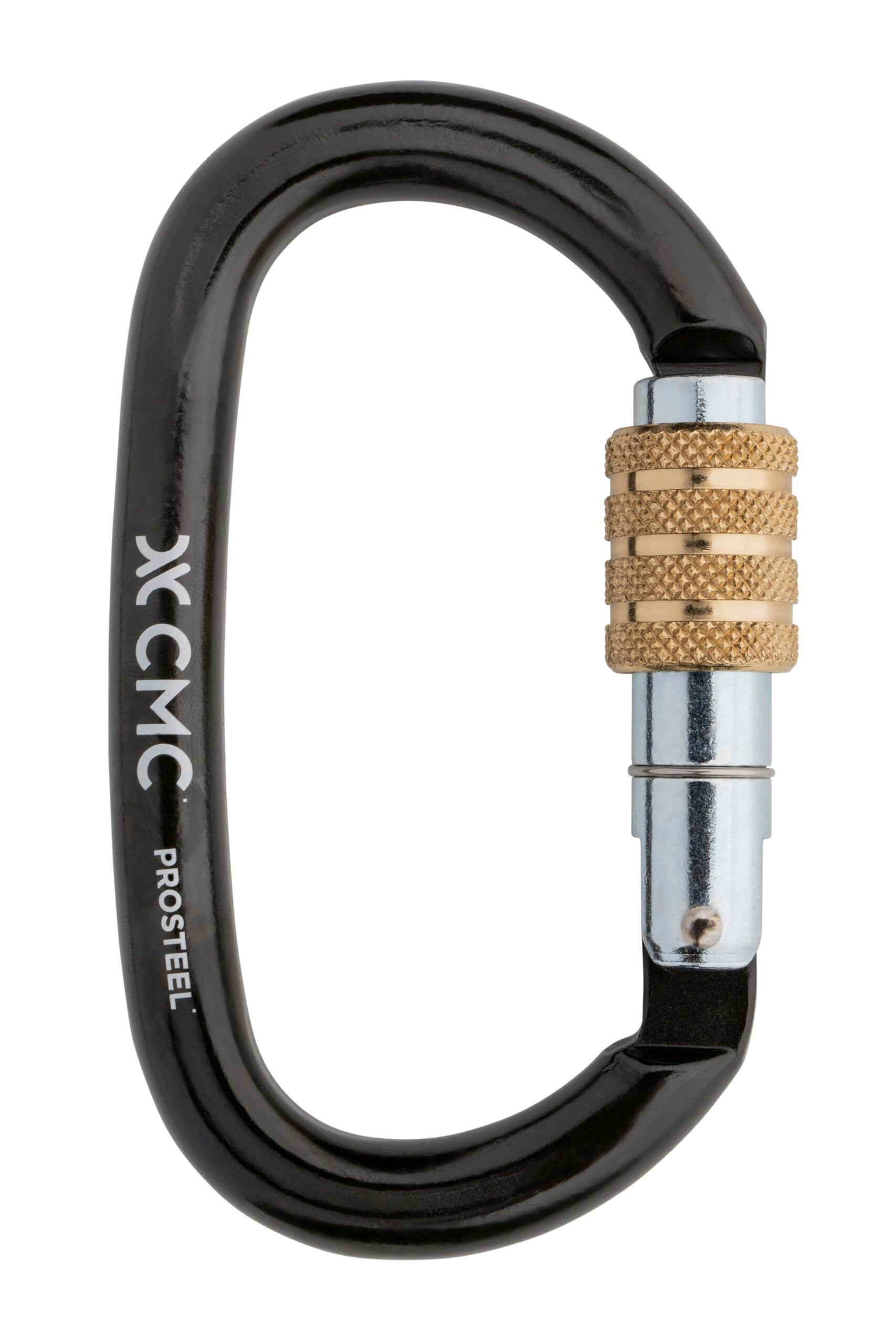

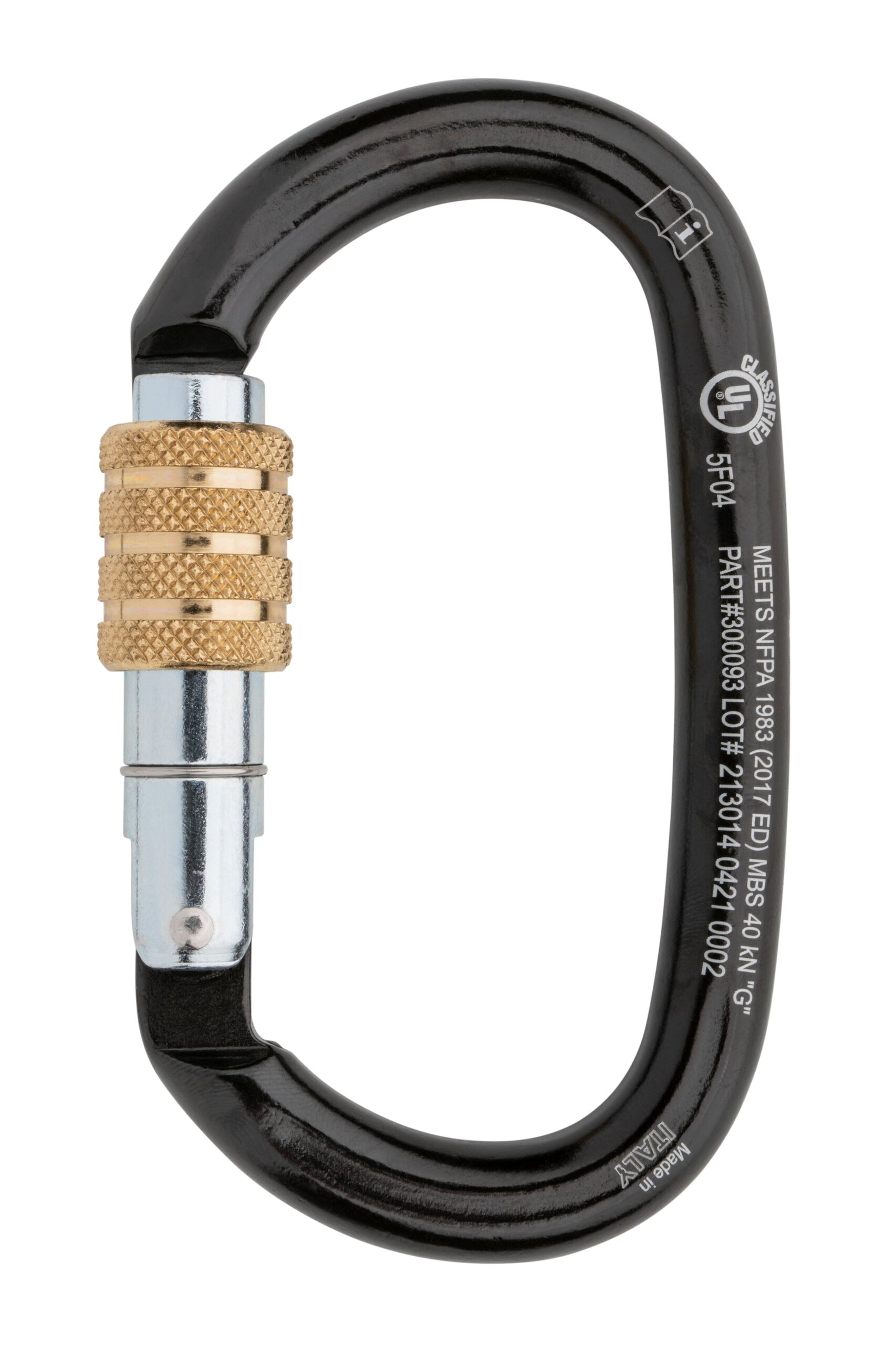

Screw-Lock Oval Carabiner
- Ideal for connection to structural anchors, lifelines, etc.
- Useful for mobile devices (pulleys, blockers, fall arresters)
- Non ANSI gate is low profile for small attachment points
- Smooth, high-friction screw sleeve, good for gloves

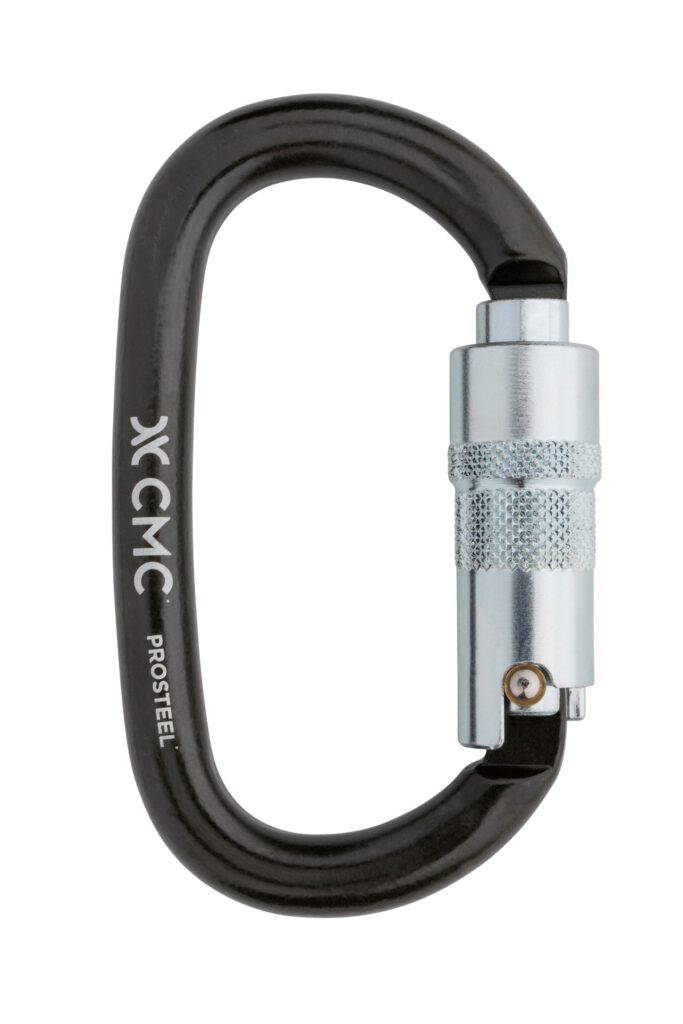

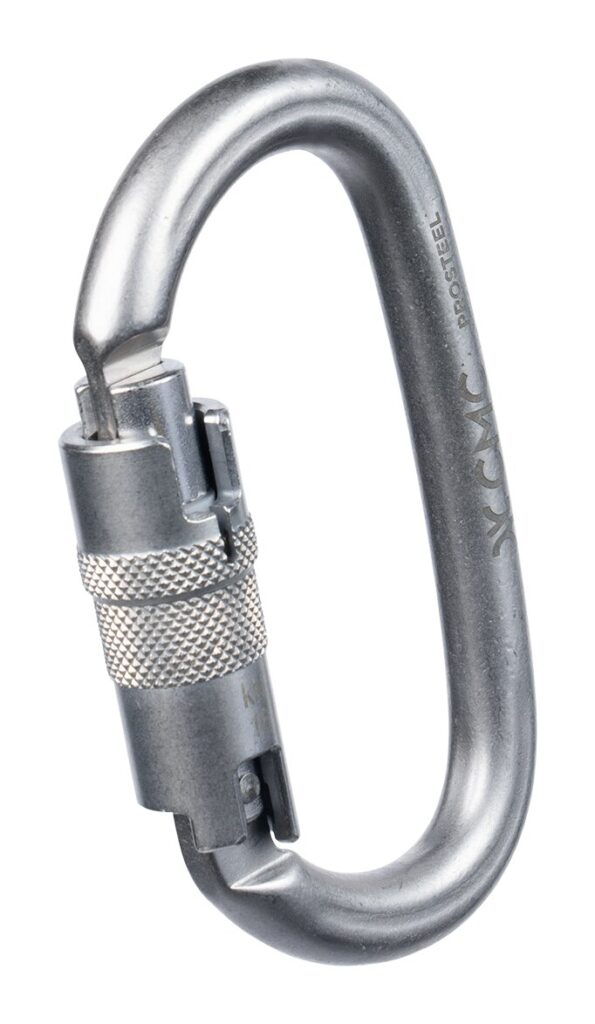

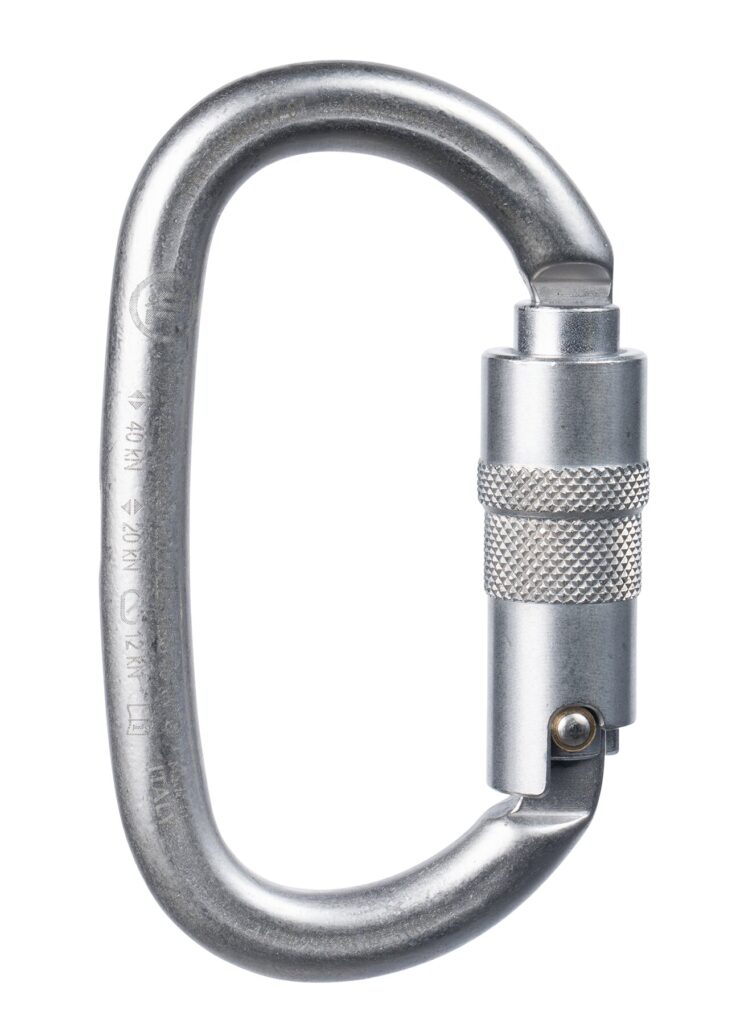

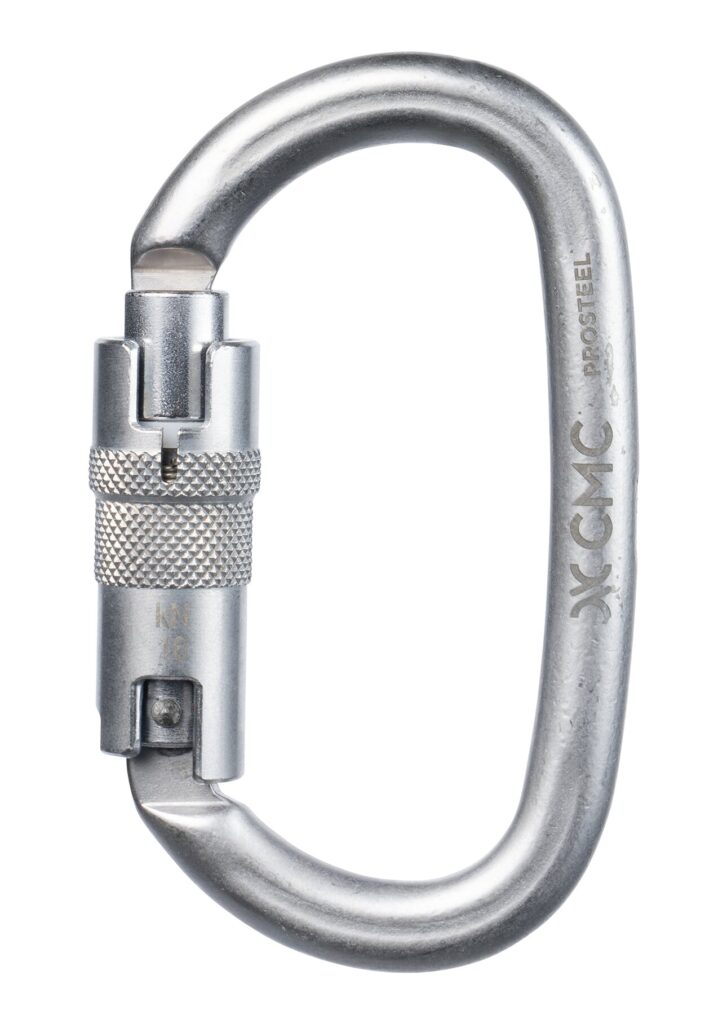

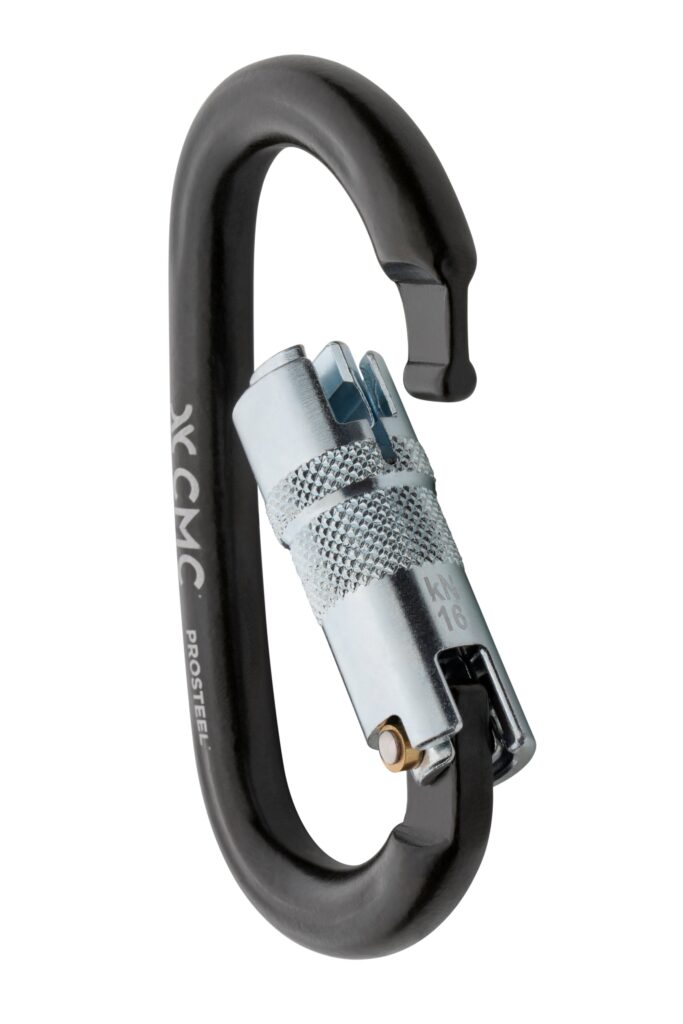

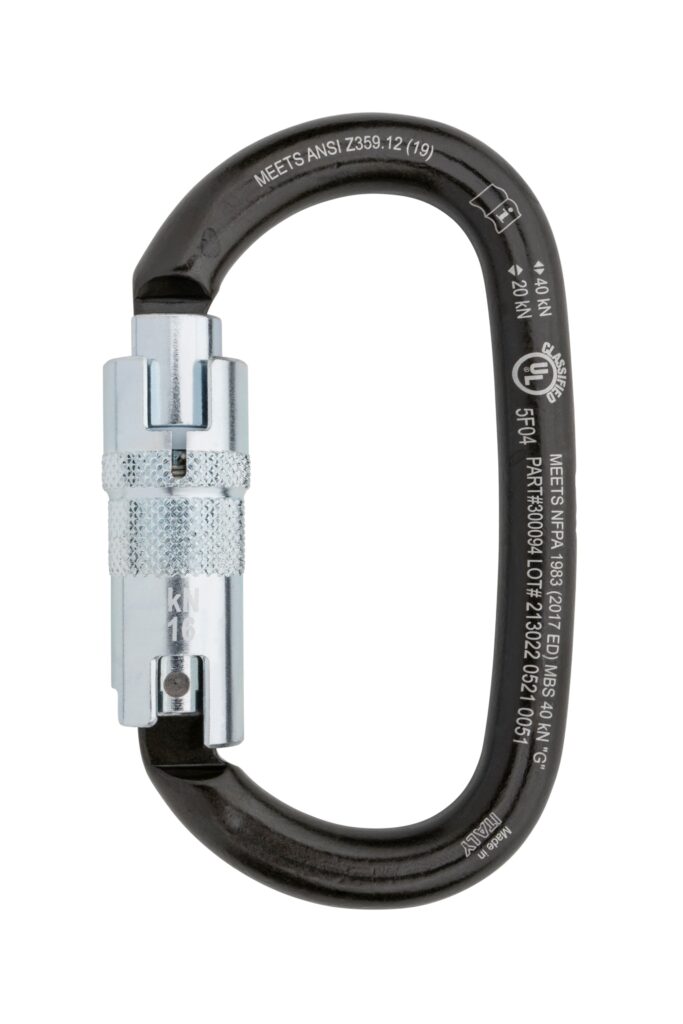

Auto-Lock Oval ANSI Carabiner
- Ideal for connection to structural anchors, lifelines, etc.
- Useful for mobile devices (pulleys, blockers, fall arresters)
- Auto-lock sleeve, reinforced for lateral stress per ANSI
- Safety of 3 movements to open: lift, turn, and push

ProSteel MBS	Major Axis	Minor Axis	Major Axis, Gate Open
300090	48 KN (10,791 LBF)	16 KN (3,597 LBF)	17 KN (3,822 LBF)
300092	48 KN (10,791 LBF)	20 KN (4,496 LBF)	17 KN (3,822 LBF)
300093	40 KN (8,992 LBF)	16 KN (3,597 LBF)	12 KN (2,698 LBF)
300094	40 KN (8,992 LBF)	20 KN (4,496 LBF)	12 KN (2,698 LBF)

Option	Item	COLOR	MATERIAL	WEIGHT	DIMENSIONS	MBS MAJOR AXIS	MBS MINOR AXIS	MBS MAJOR AXIS, GATE OPEN	CLASSIFICATION	Price
OptionScrew-Lock D Gray/Bronze	Item300090	COLOR GRAY/BRONZE	MATERIAL CARBON STEEL	WEIGHT 240 G (0.53 LB)	DIMENSIONS 114 X 76.5 MM (4.5 X 3.0 IN)	MBS MAJOR AXIS 48 KN (10,791 LBF)	MBS MINOR AXIS 16 KN (3,597 LBF)	MBS MAJOR AXIS, GATE OPEN 17 KN (3,822 LBF)	CLASSIFICATION NFPA GENERAL USE	Price$28.50
OptionAuto-Lock D Gray/Silver ANSI	Item300092	COLOR GRAY/SILVER	MATERIAL CARBON STEEL	WEIGHT 265 G (0.58 LB)	DIMENSIONS 114 X 76.5 MM (4.5 X 3.0 IN)	MBS MAJOR AXIS 48 KN (10,791 LBF)	MBS MINOR AXIS 20 KN (4,496 LBF)	MBS MAJOR AXIS, GATE OPEN 17 KN (3,822 LBF)	CLASSIFICATION NFPA GENERAL USE; ANSI Z359.12	Price$35.50
OptionScrew-Lock Oval Gray/Bronze	Item300093	COLOR GRAY/BRONZE	MATERIAL CARBON STEEL	WEIGHT 205 G (0.45 LB)	DIMENSIONS 110 X 62.6 MM (4.3 X 2.5 IN)	MBS MAJOR AXIS 40 KN (8,992 LBF)	MBS MINOR AXIS 16 KN (3,597 LBF)	MBS MAJOR AXIS, GATE OPEN 12 KN (2,698 LBF)	CLASSIFICATION NFPA GENERAL USE	Price$27
OptionAuto-Lock Oval Gray/Silver ANSI	Item300094	COLOR GRAY/SILVER	MATERIAL CARBON STEEL	WEIGHT 220 G (0.49 LB)	DIMENSIONS 110 X 62.6 MM (4.3 X 2.5 IN)	MBS MAJOR AXIS 40 KN (8,992 LBF)	MBS MINOR AXIS 20 KN (4,496 LBF)	MBS MAJOR AXIS, GATE OPEN 12 KN (2,698 LBF)	CLASSIFICATION NFPA GENERAL USE; ANSI Z359.12	Price$35
